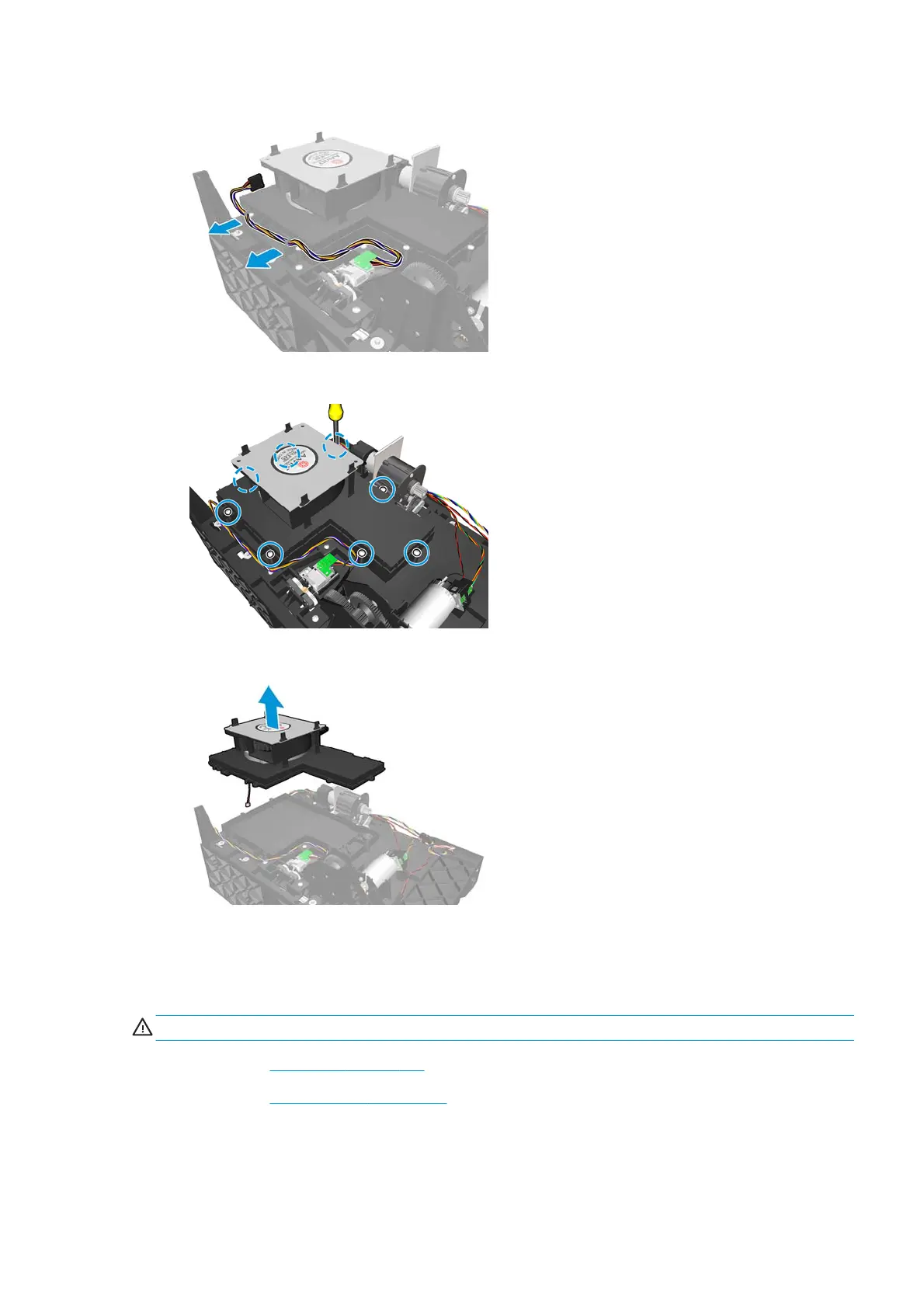

3.
Unroute the cleaning roll motor ca
ble from the Aerosol Fan Ass
embly.
4.
Remove eight T-15 screws.
5.
Remove the Aerosol Fan Assemb
ly.
Spit roller motor
Removal
WARNING!
Turn off the printer and disconnect both power cords.
1.
Remove the
Right cover
on page
246
.
2.
Remove the
Service station
on page
348
.
ENWW
Sp
it roller motor
335
346
348
