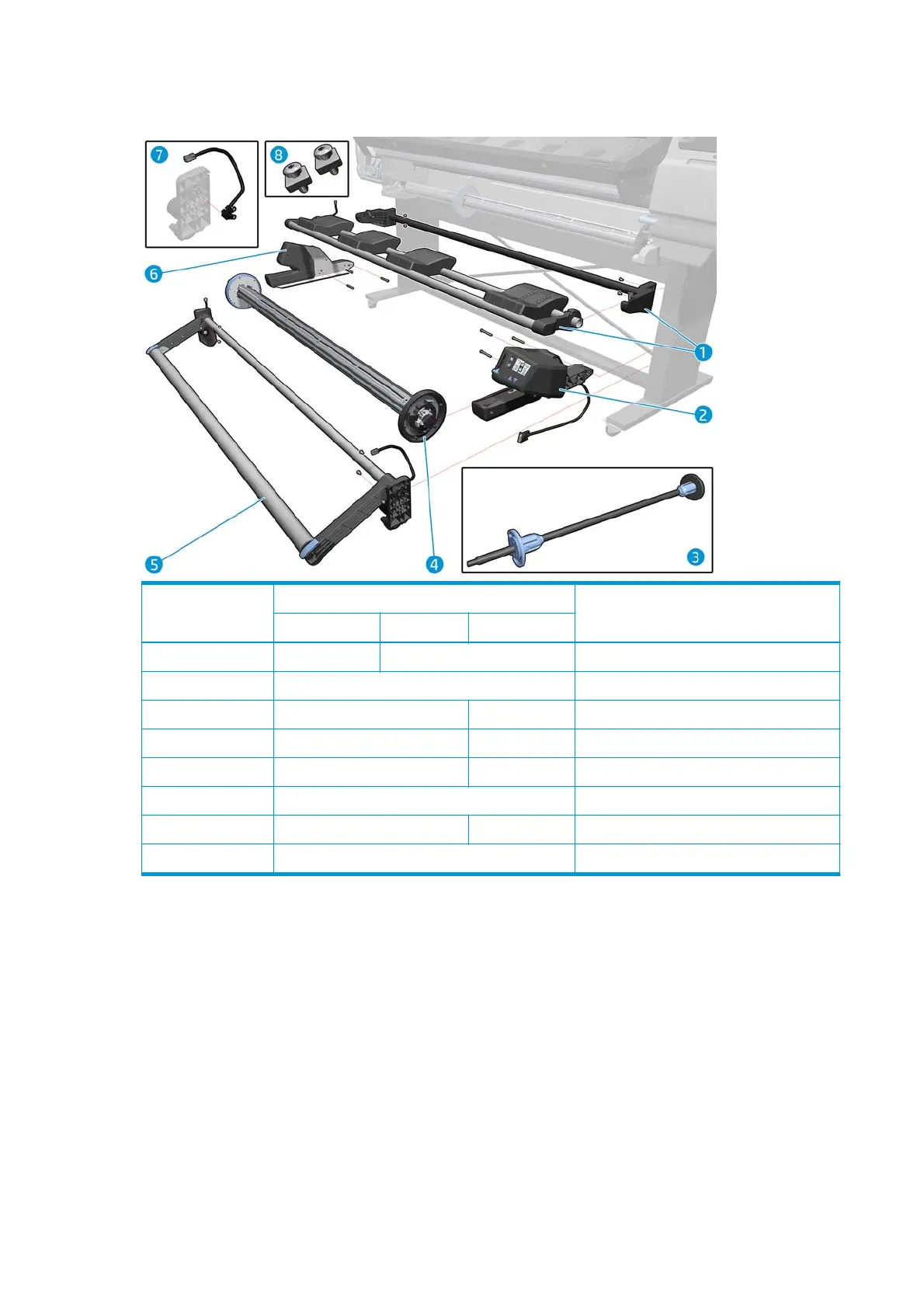

Take-Up Reel
Part number Description
HP Latex 360 HP Latex 330 HP Latex 310
1 B4H70-67095 B4H69-67042 Deflector assembly
2 B4H70-67081 Take-up reel motor module
3 B4H69-67026 3inch spindle with hubs 54
4 B4H70-67057 3inch spindle with hubs 64
5 B4H70-67094 B4H69-67041 Loop shaper (dancer)
6 B4H70-67093 Take-up reel left side module
7 B4H70-67047 n/a Take-up reel sensor module
8 B4H70-67082 Take-up reel screws with hubs and Deflectors
230 Chapter 7 Parts and Diagrams ENWW
