Verify correct terminal connections by performing the diagnostic test “3.6 Rewinder motor polarity”:
2. Perform the following Calibrations:
“5.3.5 Rewinder C0 voltage calibration”.
“4.3.1 Rewinder motor cycles”.
Primer assembly
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right cover on page 246.
2. Remove the
Right connector cover on page 258.
3. Remove the Front Panel.

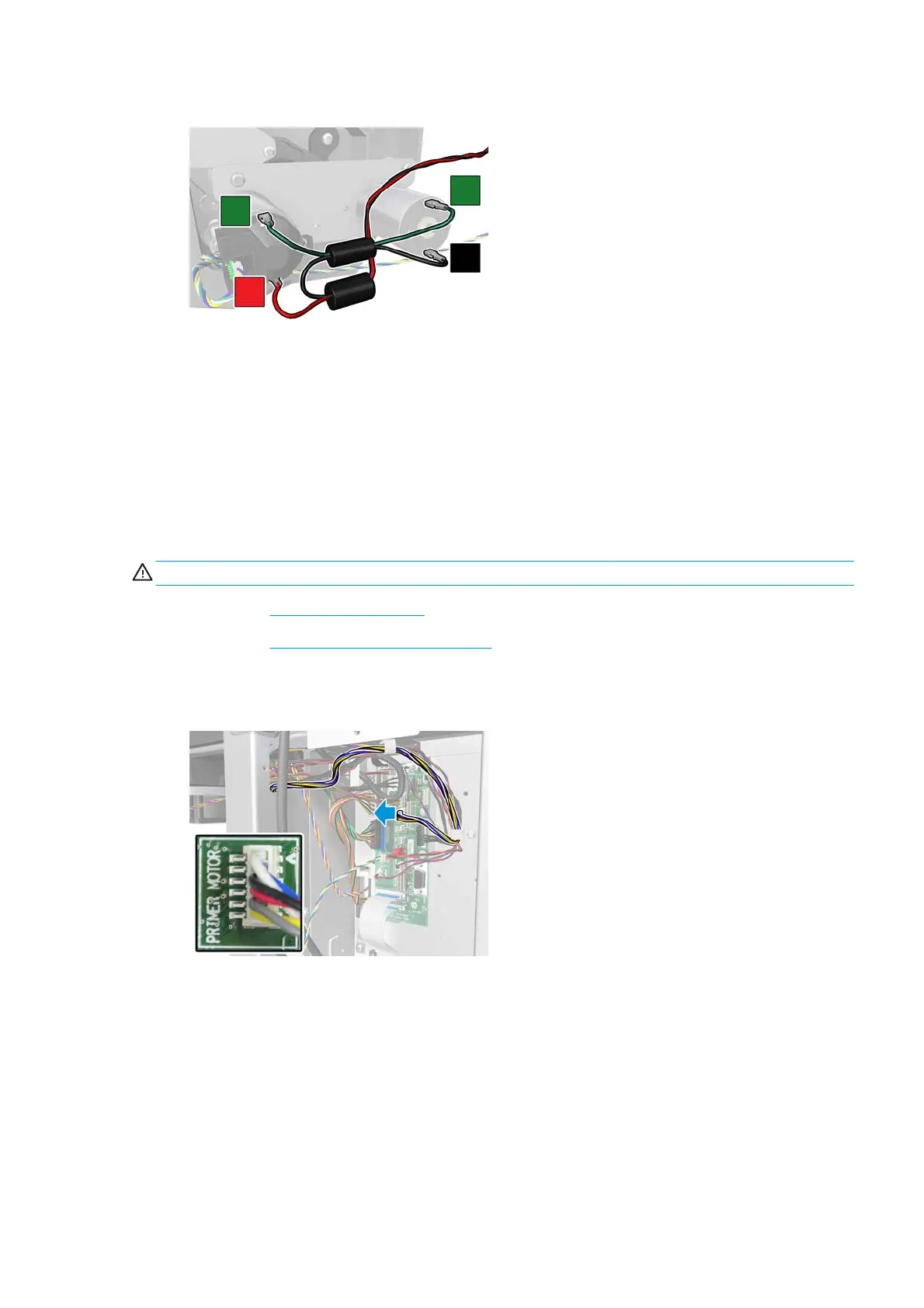

4. Disconnect the Primer Assembly Cable from the Interconnect PCA.
ENWW Primer assembly 341
