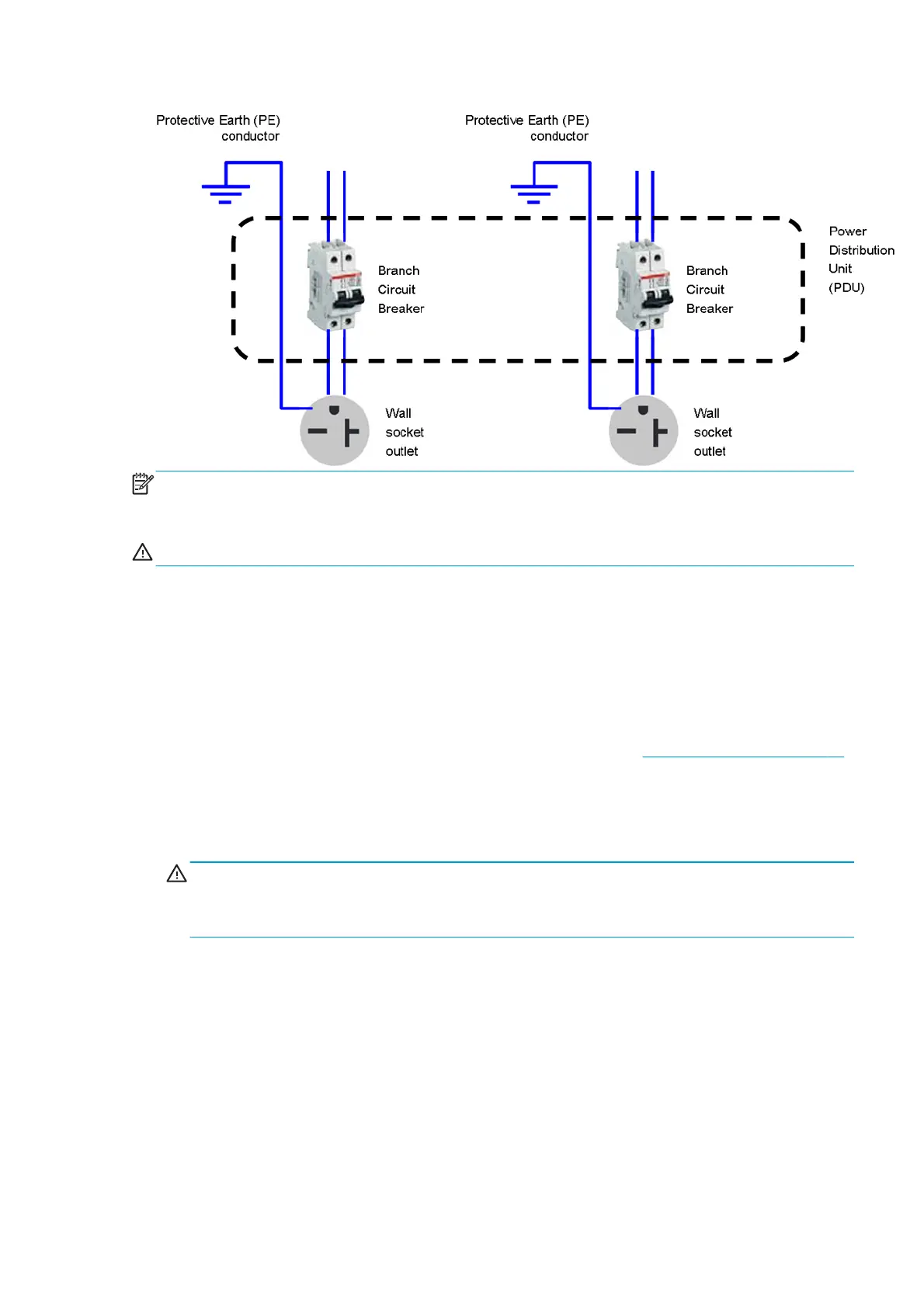

Figure 1-1 Electrical configuration diagram (for reference only)
NOTE: The Power Distribution Unit (PDU) must be rated to meet the power requirements of the printer, and
be in accordance with the Electrical Code requirements of the local jurisdiction of the country where the
equipment is installed.
WARNING! Do not use a power strip (relocatable power tap) to connect both power cords.
Wall receptacles and power cords
Two power cords are provided with your printer, according to the printer's electrical specifications. If those
cords do not reach your PDU and/or UPS, a certified electrician must install suitable extension cables on the
day of installation.
To make sure you have the right wall socket outlets (wall receptacles) ready for installation, check the
following:
1. The wall socket outlets must be suitable for printer input ratings. See
Single-phase power on page 14.
2. The wall socket outlets must be suitable for the power cord plug type used in the country of
installation. The list shows examples of the power cords and the plugs provided with the printer
according to the country. To make sure you have the right wall receptacle, find your country in the
appropriate table and check the plug type.
WARNING! Only use the power cord supplied by HP with the printer. Do not use a power strip
(relocatable power tap) to connect both power cords. Do not damage, cut, or repair the power cord. With
a damaged power cord, there is risk of fire and electric shock. Always replace a damaged power cord
with an HP-approved power cord.
Table 1-4 HP Latex 330/360 Printers— Printer power cord specifications:
ENWW Electrical system 15
