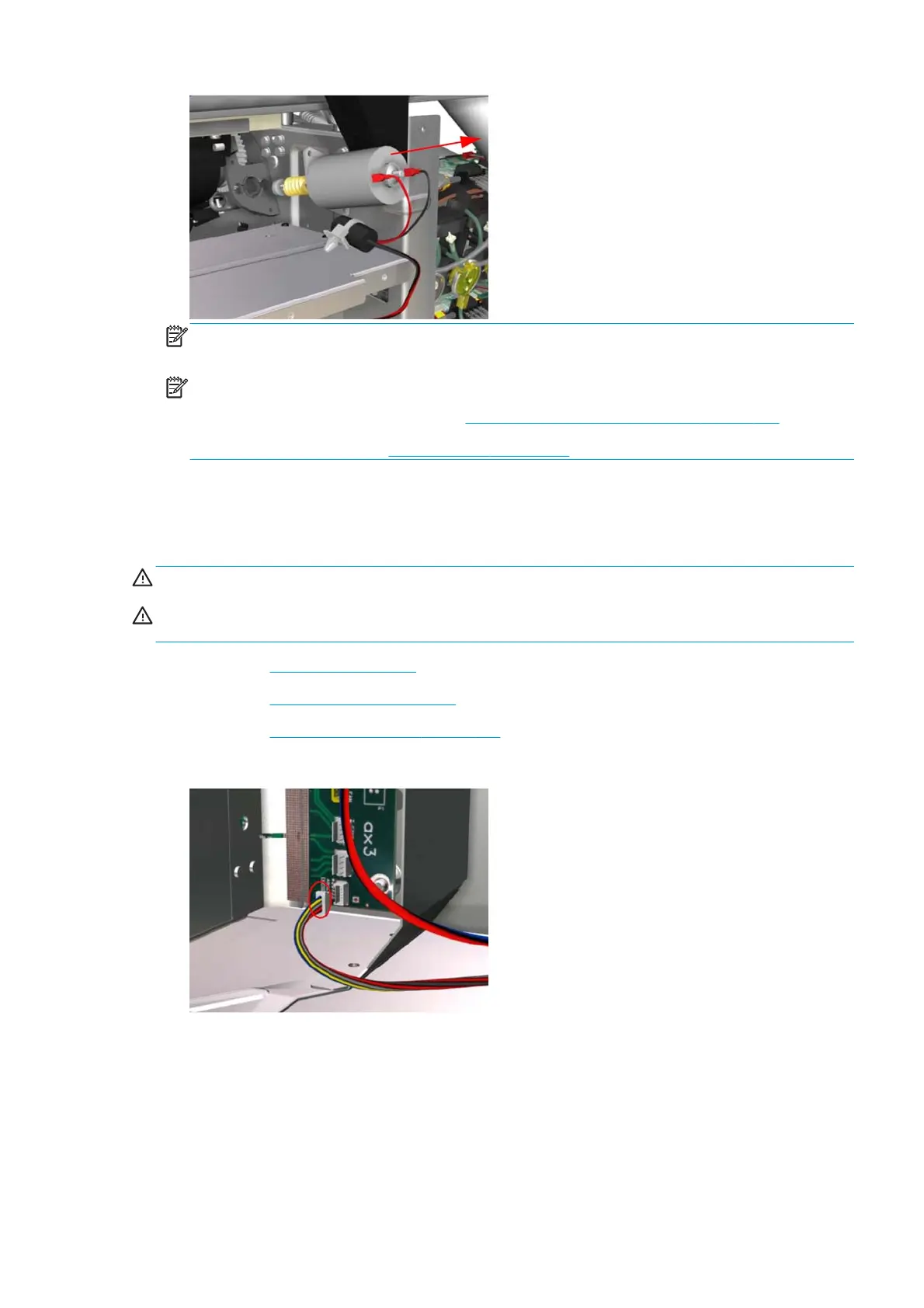

NOTE: When reinstalling the parts, make sure you apply the grease (included with the support part) to
the gears.
NOTE: After installing the NEW Substrate-Axis Motor, perform the following Service Calibration:
●
Substrate Advance Calibration — See
4.1.1 Substrate-Advance Calibration on page 178
●
Drive Roller Motor — See
2.2 Drive Roller on page 147
Encoder disc and sensor
Removal
WARNING! Turn off the printer and disconnect both power cords.
CAUTION: Handle the encoder disc very carefully: any finger prints, scratches, or stains could cause the
printer to malfunction.
1. Remove the Left cover on page 249.
2. Remove the
E-box extension on page 260.
3. Remove the
Ink Supply Station (ISS) on page 355.
4. Disconnect the Encoder Sensor cable from the PrintMech PCA.
ENWW Encoder disc and sensor 385
