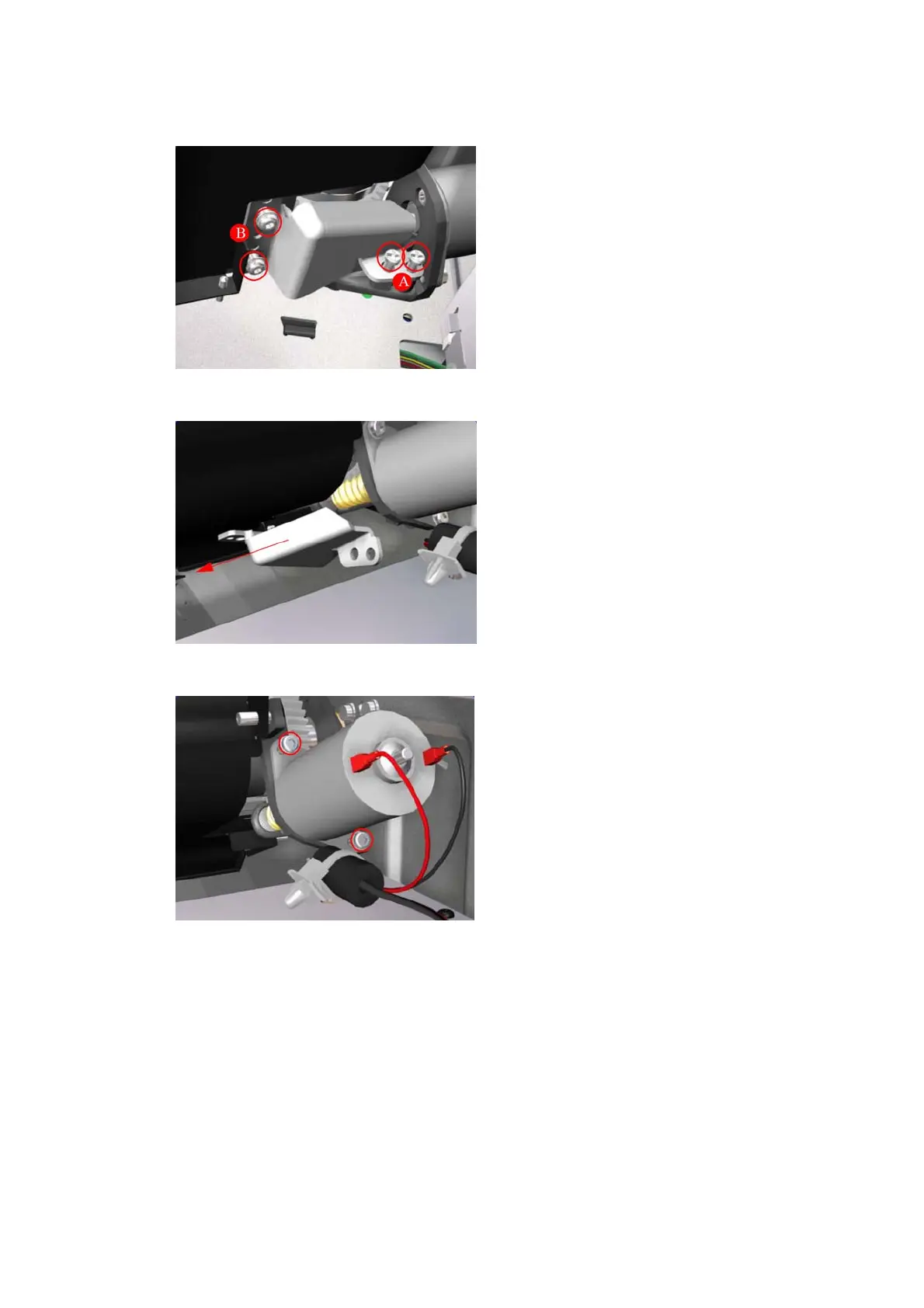

6. Remove the T-15 screws (Type R) identified (A) and loosen the T-15 screws (Type R) identified (B) that
secure the Substrate-Axis Motor.
7. Remove the Substrate-Axis Motor Bracket.
8. Remove two T-20 screws (Type B) that secure the Substrate-Axis Motor Bracket.
9. Remove the Substrate-Axis Motor from the printer.
