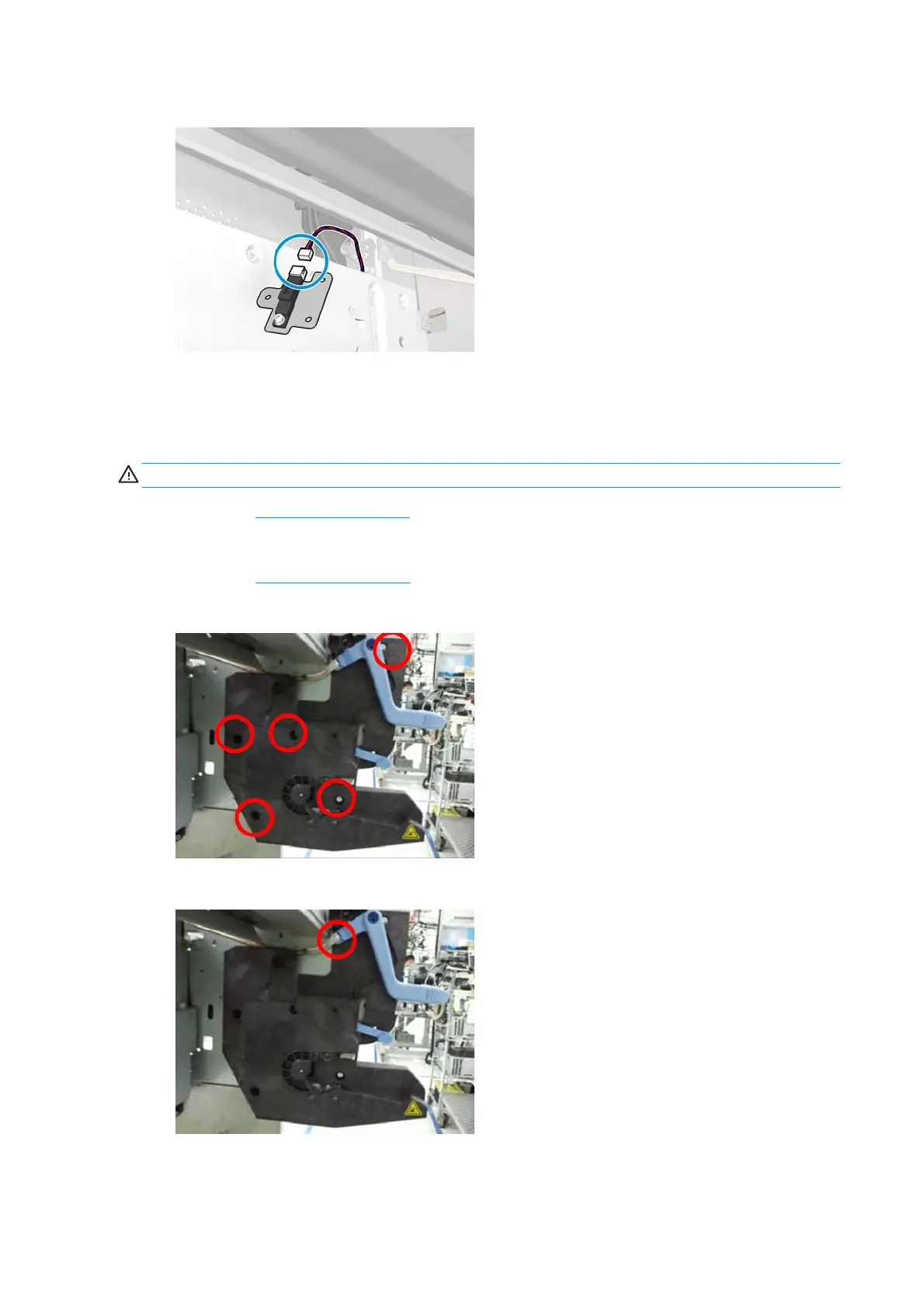

6. Disconnect the cable from the connector to remove the Substrate Sensor.
Right rollfeed module assembly
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Input roller on page 290
2. Remove the Substrate Spindle (if installed).
3. Remove the
Right cover on page 246
4. Remove five T-20 screws that secure the Right Rollfeed Module to the printer.
5. Remove one T-15 screw to release the pinch rod from the blue lever.
294 Chapter 8 Removal and installation ENWW
