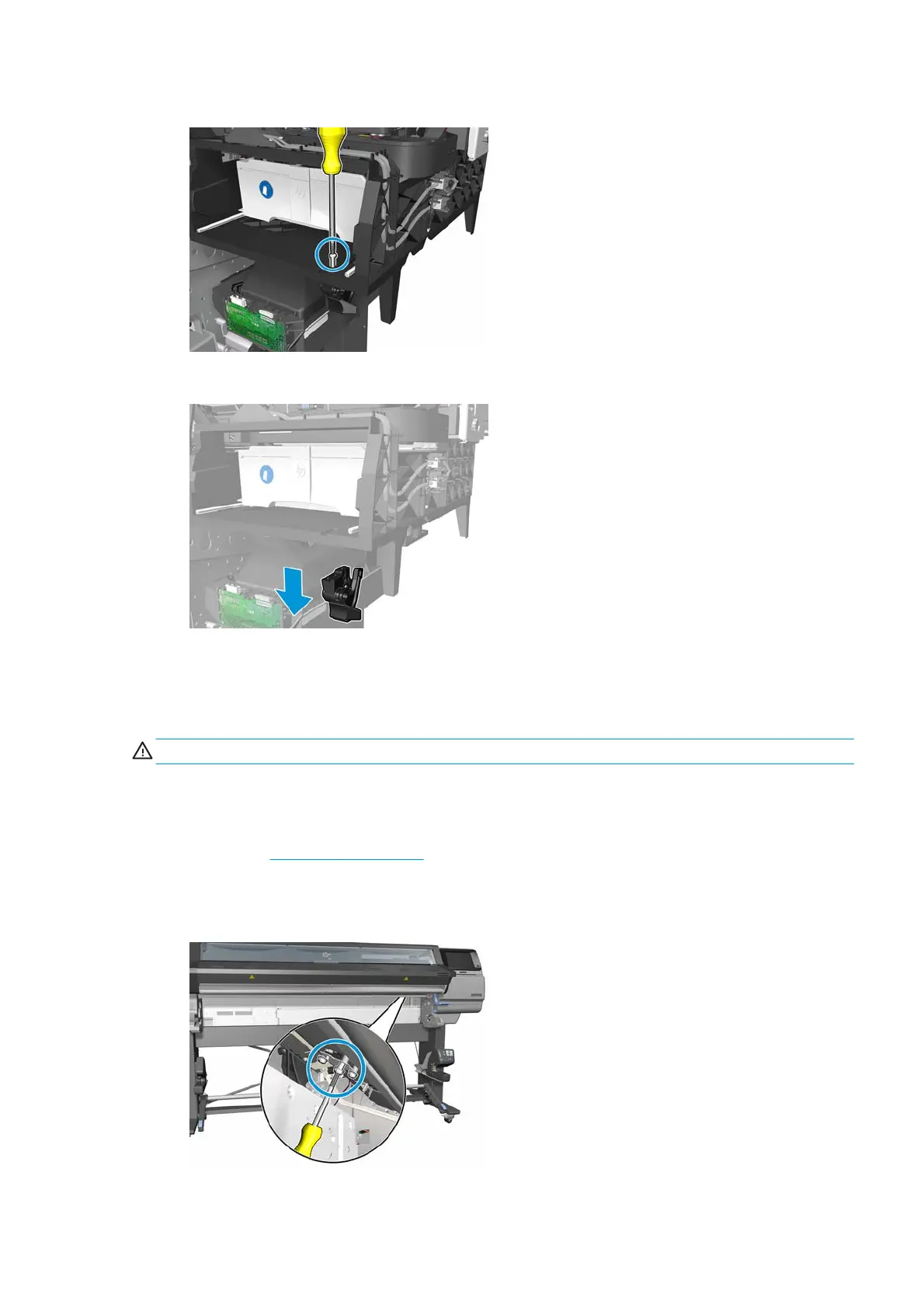

3. Release one T-10 screw the attaches the maintenance-cartridge door sensor assembly to the printer.
4. Remove the maintenance-cartridge door sensor assembly from the printer.
Substrate sensor
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Loading Table
2. Remove the input and output Spindles.
3. Remove the
Input roller on page 290.
4. Remove the tension bar.
5. Beneath the printer, remove three screws to release the Substrate Sensor.
ENWW Substrate sensor 293
