See the user’s guide for more information.

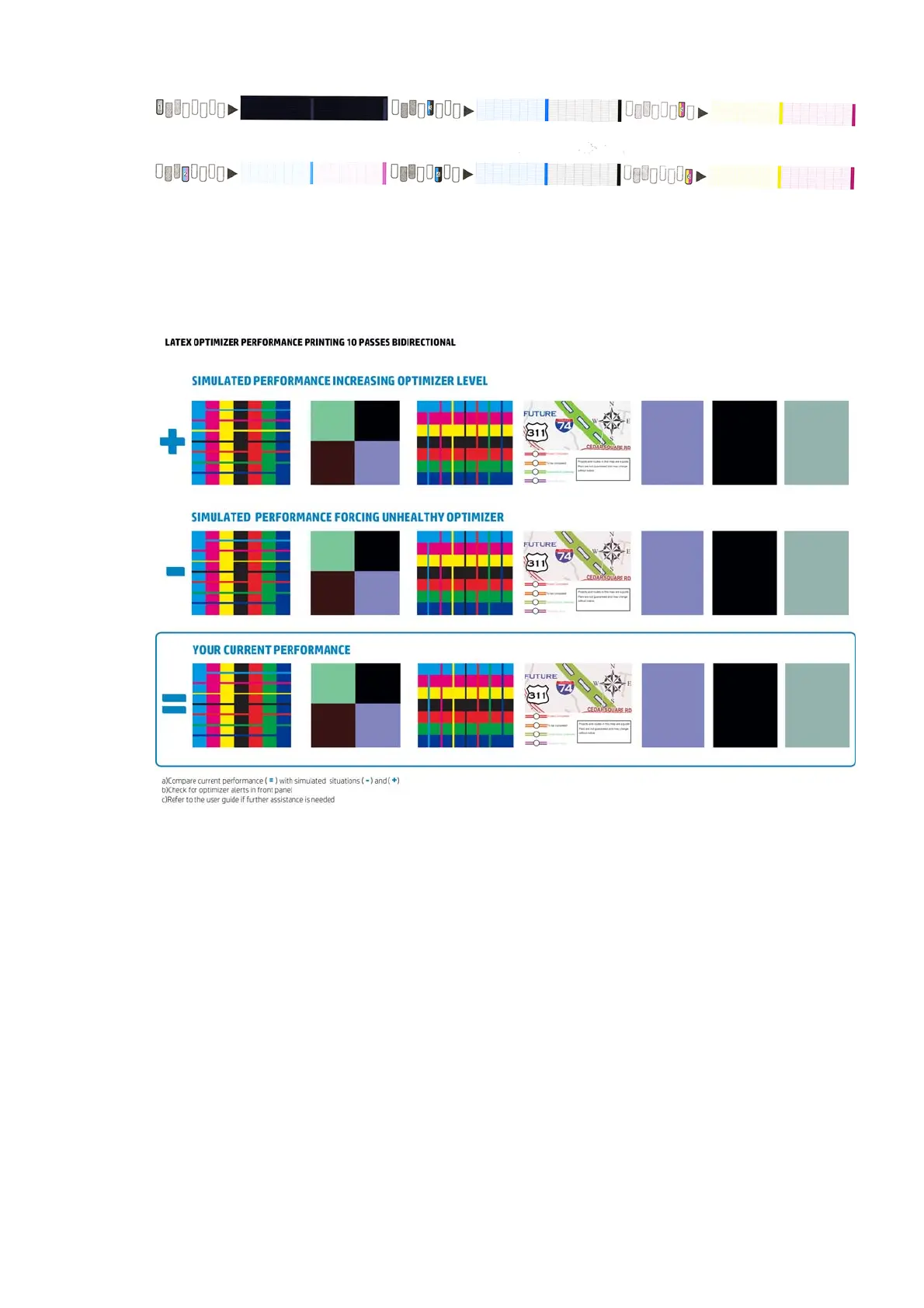

Optimizer health test plot
The printhead health test plot can be printed from the Settings menu > Image quality maintenance > Print
latex optimizer test plot.
See the user’s guide for more information.
Substrate-advance test plot
See the user’s guide for more information.
There follows a more comprehensive explanation of how to print this plot in particular, interpret it, and apply
the correction.
There are two different ways to print the substrate-advance test plot; both ways produce the same plot. It
can be printed from the Settings menu > Image quality maintenance > Substrate advance calibration > Print
adjustment plot or from the Service menu List > Image Quality Plots > 2.3 Substrate Advance > 2.3.1 Print
adjustment plot.
ENWW Optimizer health test plot 191
