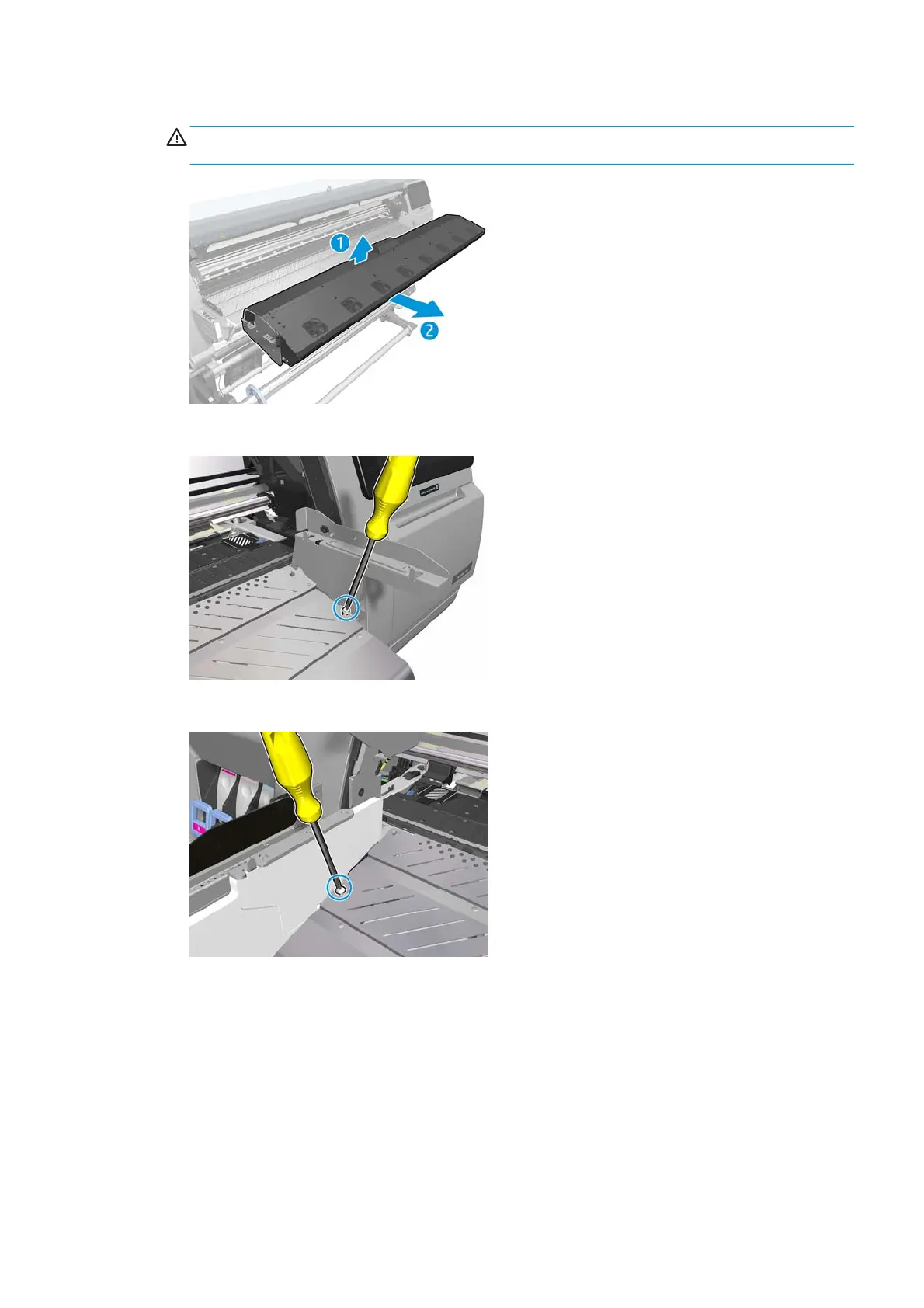

7. Remove the impinging module; lift upwards (1), and take out (2).
WARNING! The module is heavy. Two people are recommended. The underside of the module is
fragile, particularly the impinging deflectors. Handle with care.
8. Remove one T-20 screw from the right side of the Output Platen.
9. Remove the custom shoulder screw from the left side of the Output Platen.
ENWW Output platen 289
