HP Latex 300 Series Service Manual

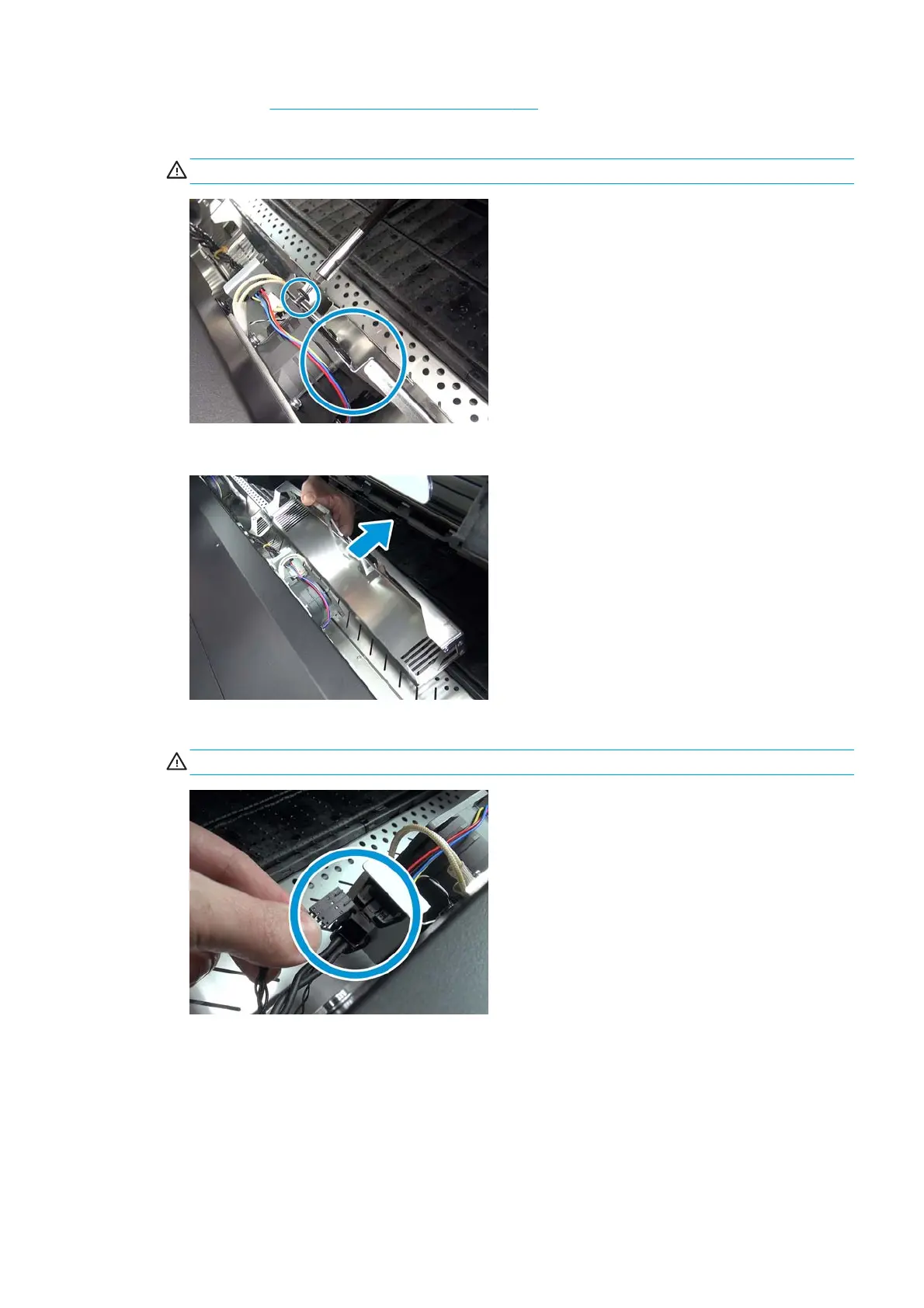

5. Remove the Impinging recirculation cover on page 266.
6. Remove four T-20 screws to remove the impinging deflector.
CAUTION: The deflector can easily be deformed.
7. Remove the impinging deflector.
8. Disconnect the three cables that are in the holder bracket.
CAUTION: Make sure to disconnect the cables, for your own safety.
ENWW Impinging heater module 269
