HP Latex 300 Series - Cartridge tray

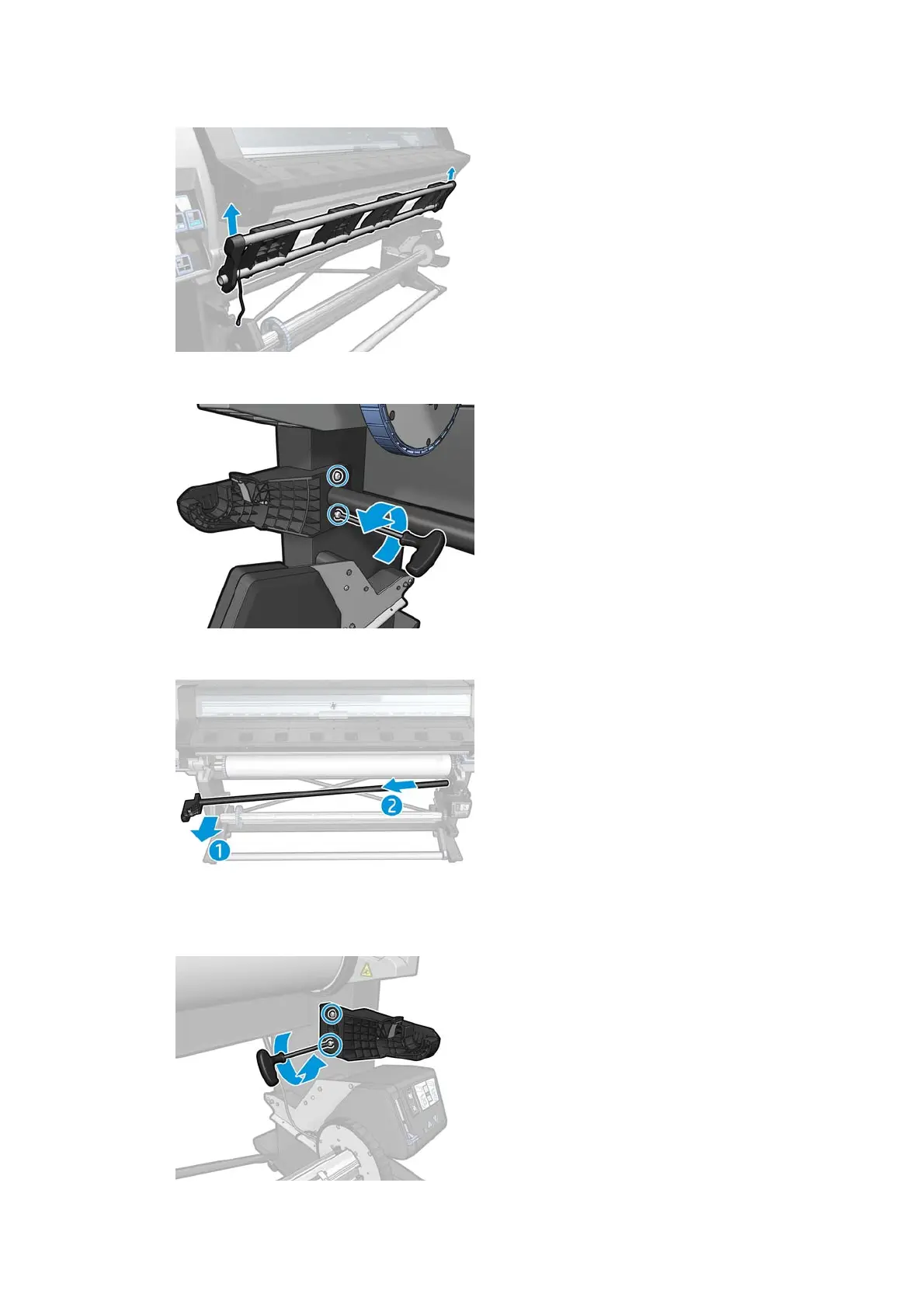

2. Remove the take-up reel deflector from the printer.
3. Remove the two T-20 screws that attach the left deflector support to the left leg assembly.
4. Remove the left deflector support.
5. Remove the two T-20 screws that attach the right deflector support to the right leg assembly.
300 Chapter 8 Removal and installation ENWW
