HP Latex 300 Series Service Manual

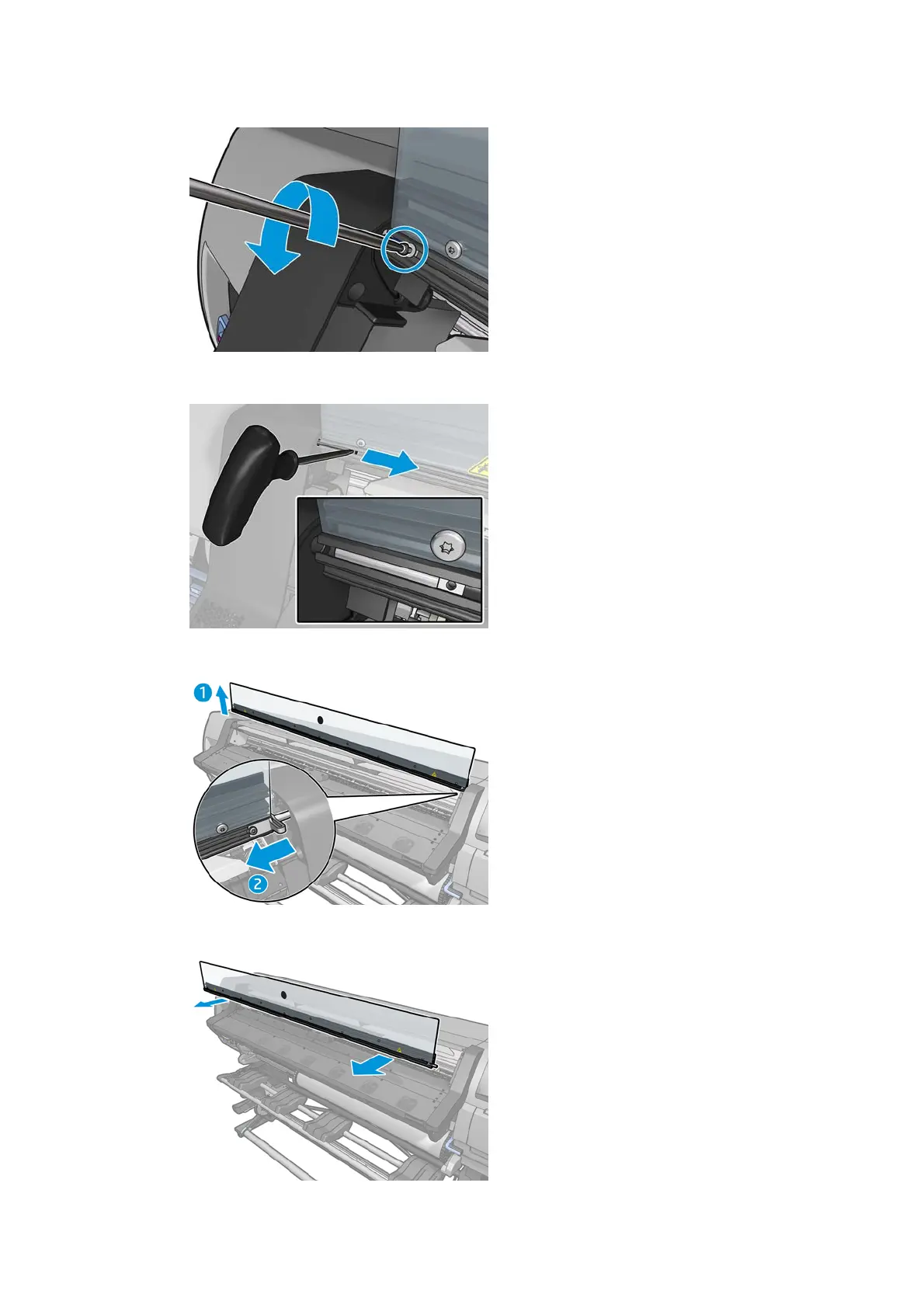

2. Remove one screw on the left hinge to disconnect the grounding cable.
3. Move the hinge rod by sliding it to the right by the window profile.
4. Lift up the left side of the window and disengage the right window hinge.
5. Remove the window.
ENWW Window 315
