HP Latex 300 Series Service Manual

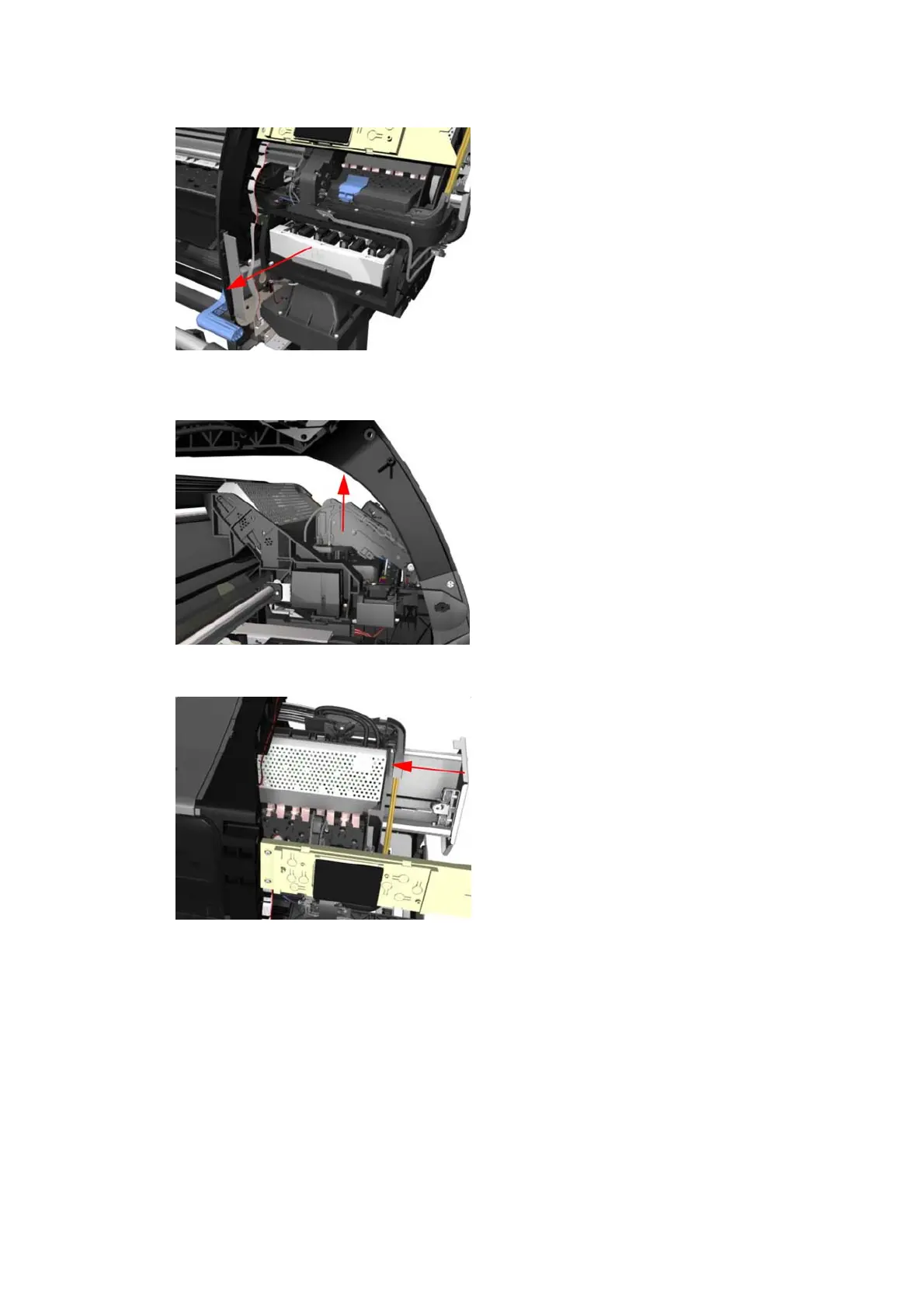

4. Uncap the Carriage Assembly by manually pulling out the Printhead Maintenance Cartridge tray.
5. Lift the Primer and hold the Primer to its maximum position to avoid damaging it when you move the
Carriage Assembly in the next step.
6. Move the Carriage Assembly slightly away from the right Scan-Axis Bracket.
320 Chapter 8 Removal and installation ENWW
