HP Latex 300 Series Service Manual

3. Remove the Top cover on page 254.

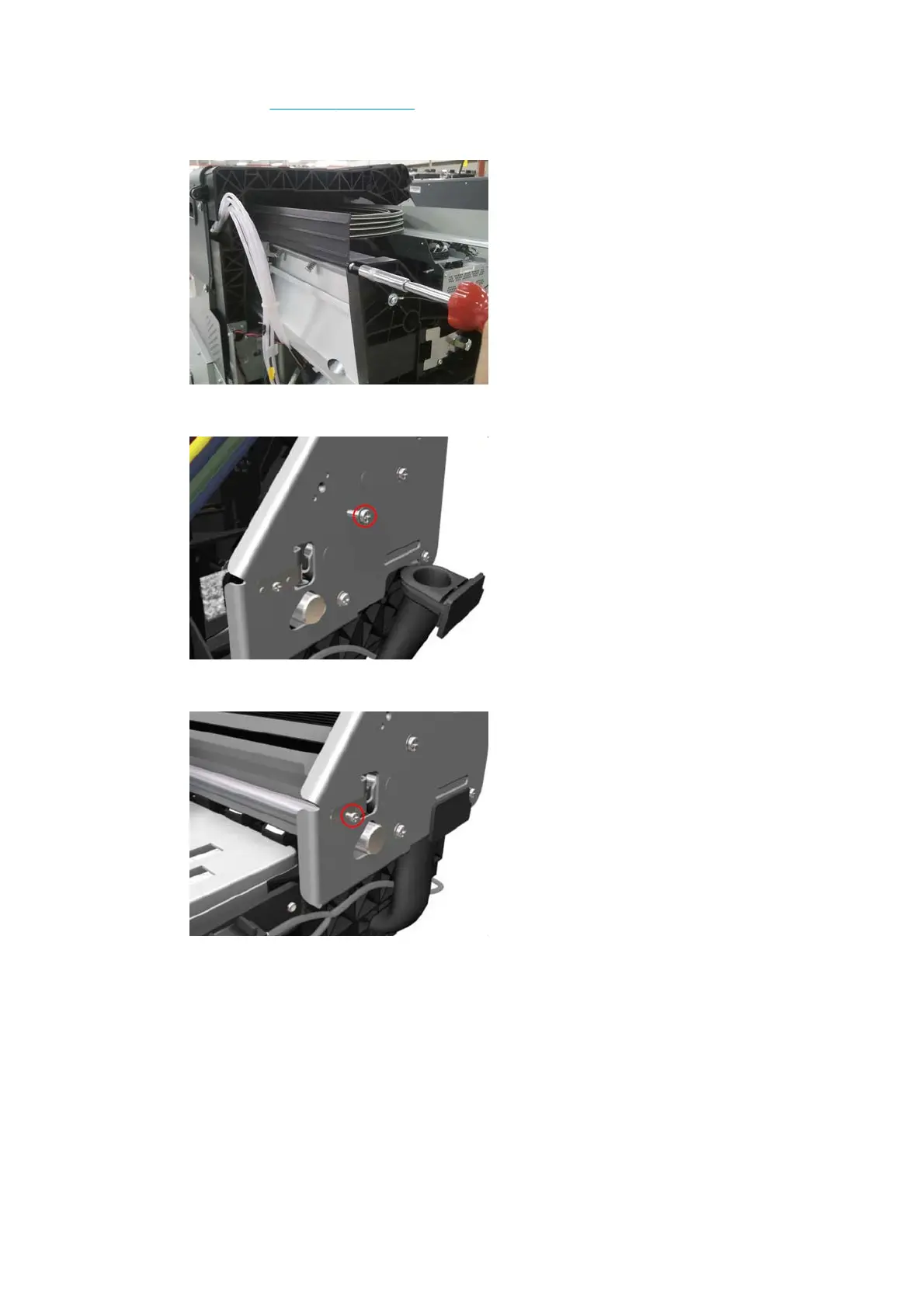

4. Remove the T-15 screw holding the rear tube shelf to the left side plate.
5. Remove the T-20 screw (Type A) that secures the belt tensioner to the chassis.
6. Remove the T-10 screw (Type C) that secures the encoder strip.
ENWW Rear tube shelf 333
