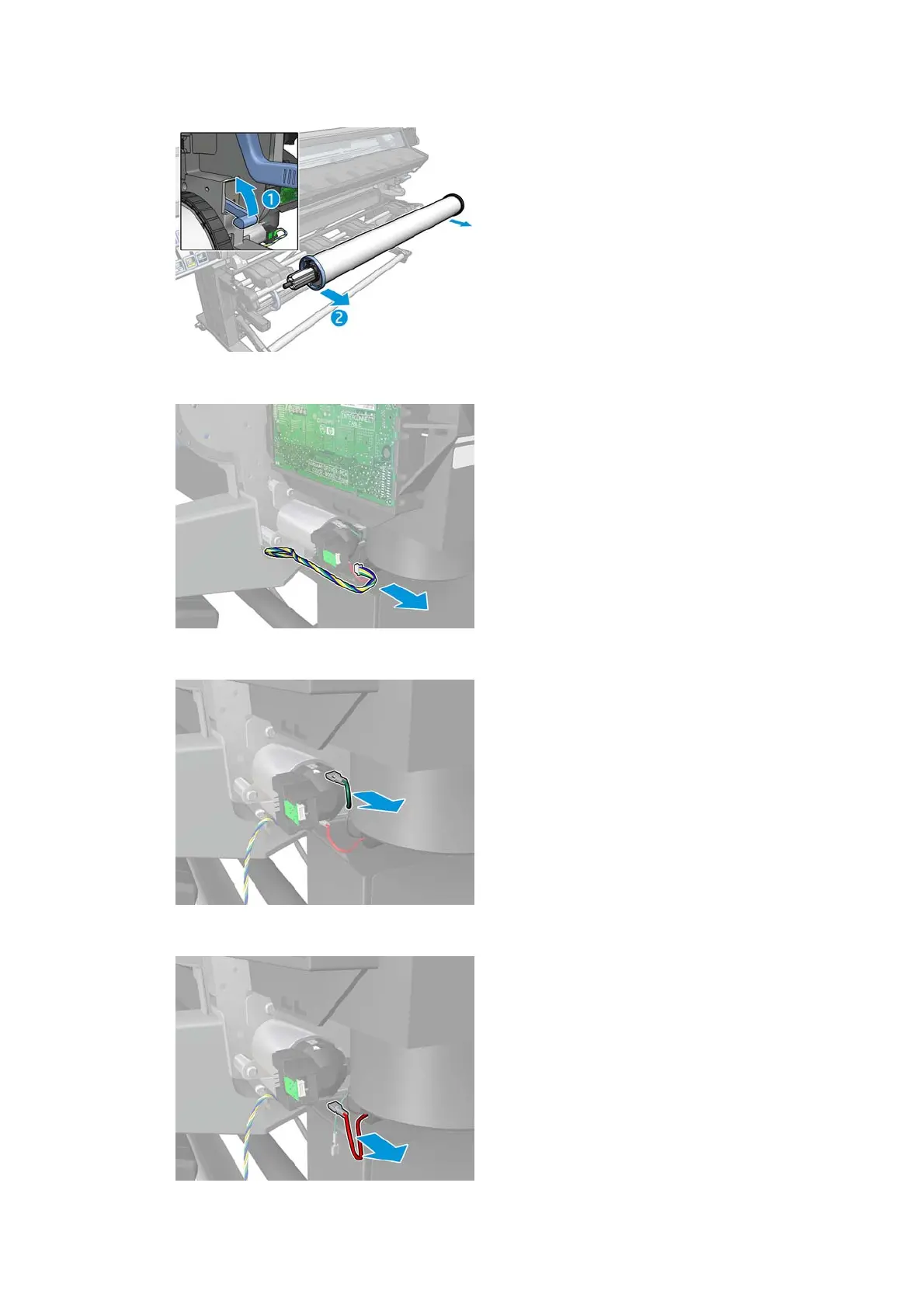

2. Lift up the Spindle lock and remove the Spindle.
3. Unclip the Ferrite attached to the Sideplate.
4. Disconnect the encoder cable from the Rewinder motor.
5. Disconnect the Black Cable from the Left side of the Rewinder Motor.
338 Chapter 8 Removal and installation ENWW
