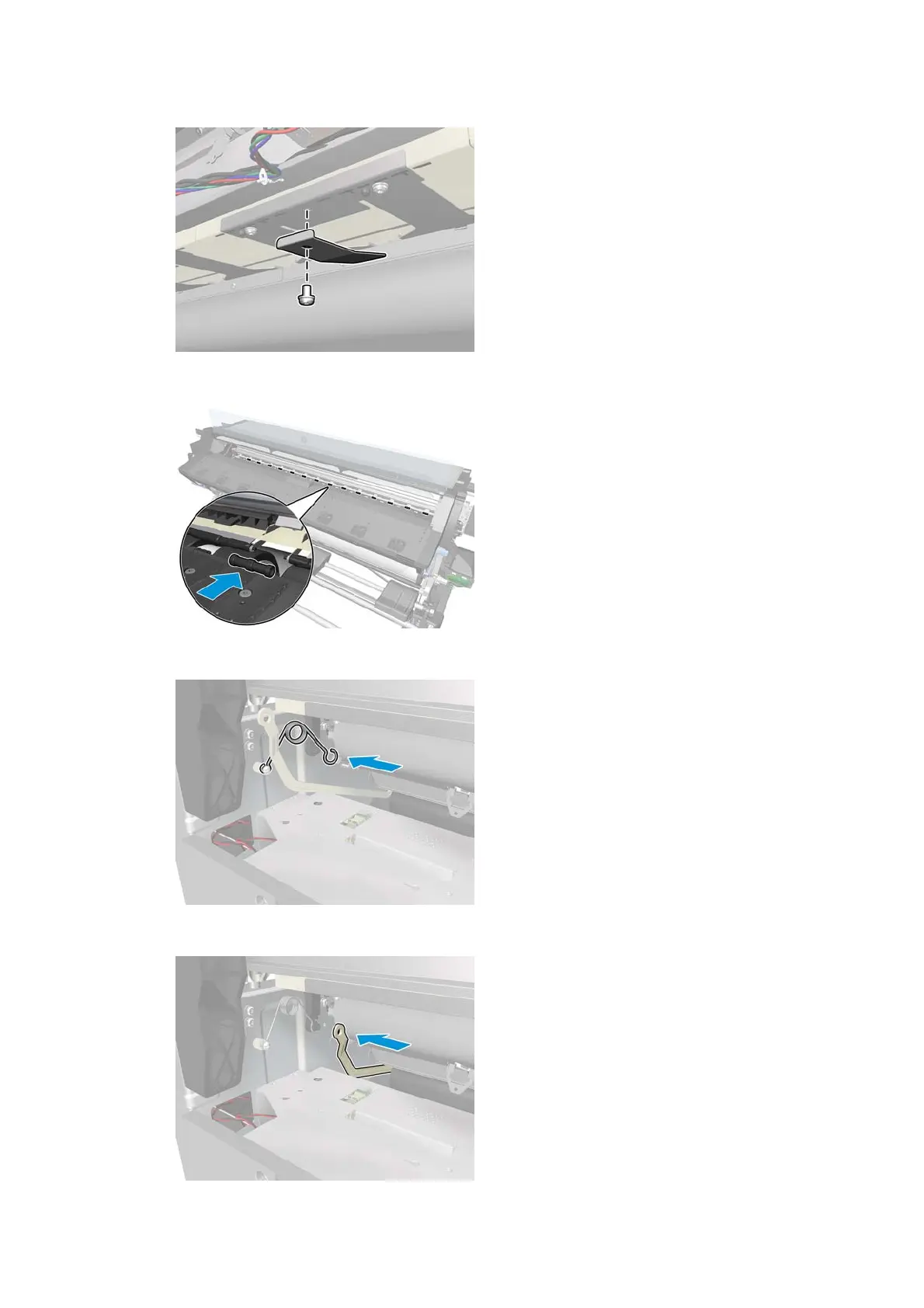

7. Insert the T-20 screw and secure the attachment plate to the central pinchwheel subassembly.
8. Reinsert the interpinches that you removed earlier.
9. Connect the spring from the pinchwheels cam-arm.
10. Connect the linkage from the pinchwheels cam-arm.
410 Chapter 8 Removal and installation ENWW
