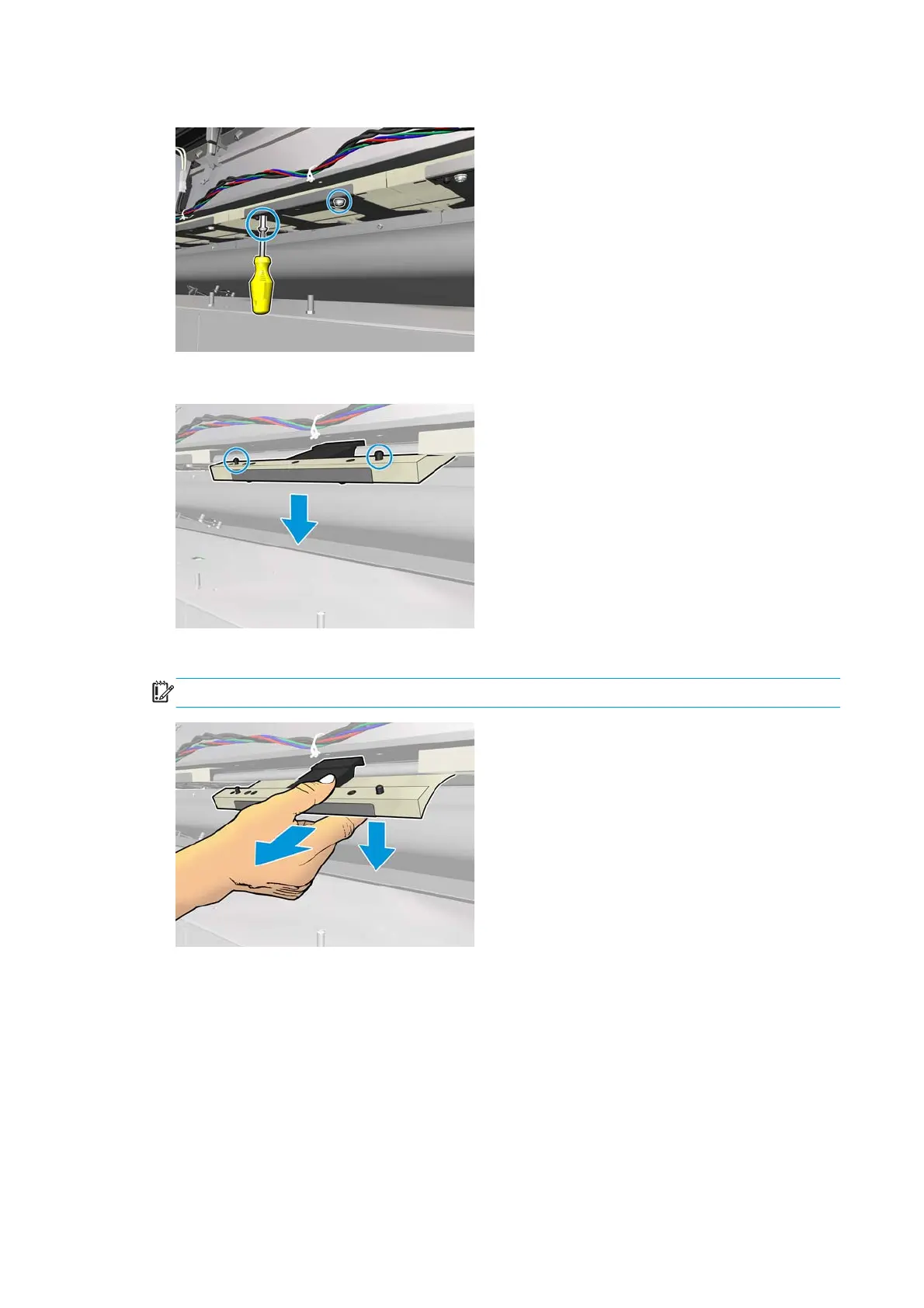

4. Remove the two T-20 screws that secure the individual pinchwheels to the scan axis.
5. Unclip the individual pinchwheel from the scan axis by pressing down on the module.
6. Bend the individual pinchwheel while pushing the module back.
IMPORTANT: Bend the module so that the black plastic part avoids the cam.
412 Chapter 8 Removal and installation ENWW
