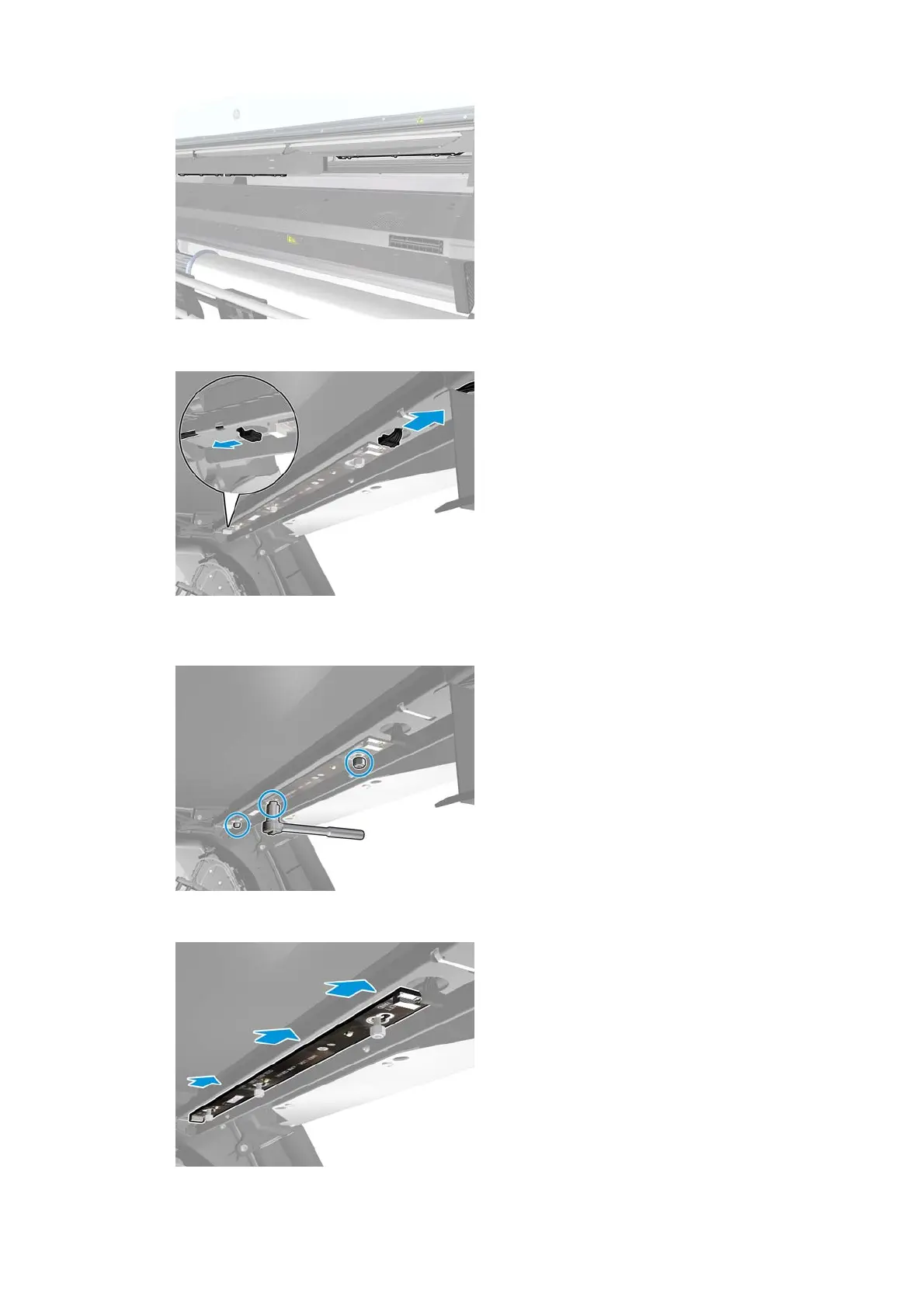

2. Unplug the cables from the defective PCA.
3. Untighten the two nuts until the inner light PCA moves freely. There is no need to remove the nuts
completely.
4. Move the inner light PCA slightly to the right in order to remove it.
440 Chapter 8 Removal and installation ENWW
