Lexmark C792 series User Manual

Diagnostic information 2-83
5062
Go Back
Previous
Next
143.xx—Magenta cartridge motor error service check
Step Questions / actions Yes No
1 Turn the printer off, open the system board
shield, and remove the connector shield.

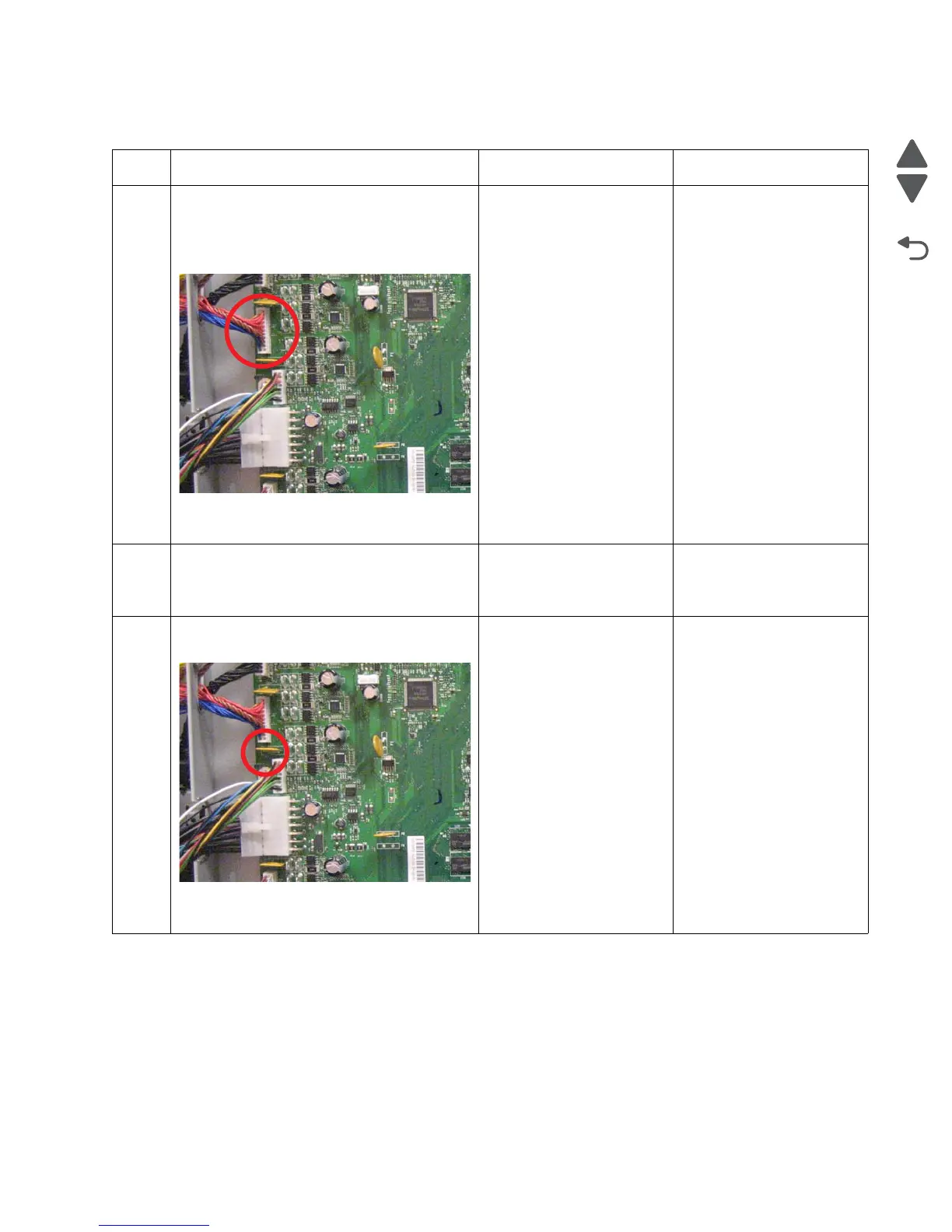

Check the cable in the connector JCM1
(BLDC C&M cable) for proper connection to
the system board.
Is the cable properly connected?
Go to step 2. Reseat the cable.
2
Check the cable for damage.
Is the cable damaged?
Replace the BLDC C&M
cable. See “EP drive
assembly removal” on
page 4-56.
Go to step 3.
3
Measure the resistance across the fuse F7 on
the system board.
Is the fuse blown?
Replace the system board.
See “System board
removal” on page 4-151.
Go to step 4.

Lexmark C792 series Specifications

General

Print Technology	Color Laser
Print Speed (Letter, Black)	50 ppm
Print Speed (Letter, Color)	50 ppm
Processor Speed	1.2 GHz
Monthly Duty Cycle	150, 000 pages
Maximum Paper Size	8.5 x 14 inches (Legal)
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	1200 x 1200 dpi
Duplex Printing	Standard
Connectivity	USB, Ethernet
Media Sizes Supported	A4, A5, Letter, Legal, Executive, Folio, JIS B5
Media Types Supported	Card Stock, Envelopes, Labels, Plain Paper, Transparencies
Input Capacity (Standard)	650 sheets
Output Capacity (Standard)	500 sheets
