Lexmark C792 series - HTU Drive Belt Removal

To Next Page

To Previous Page

4-290 Service Manual

5062

Go Back

HTU drive belt removal

1. Remove all output options from the printer.

2. Remove the HTU controller card. See “HTU controller card removal” on page 4-289.

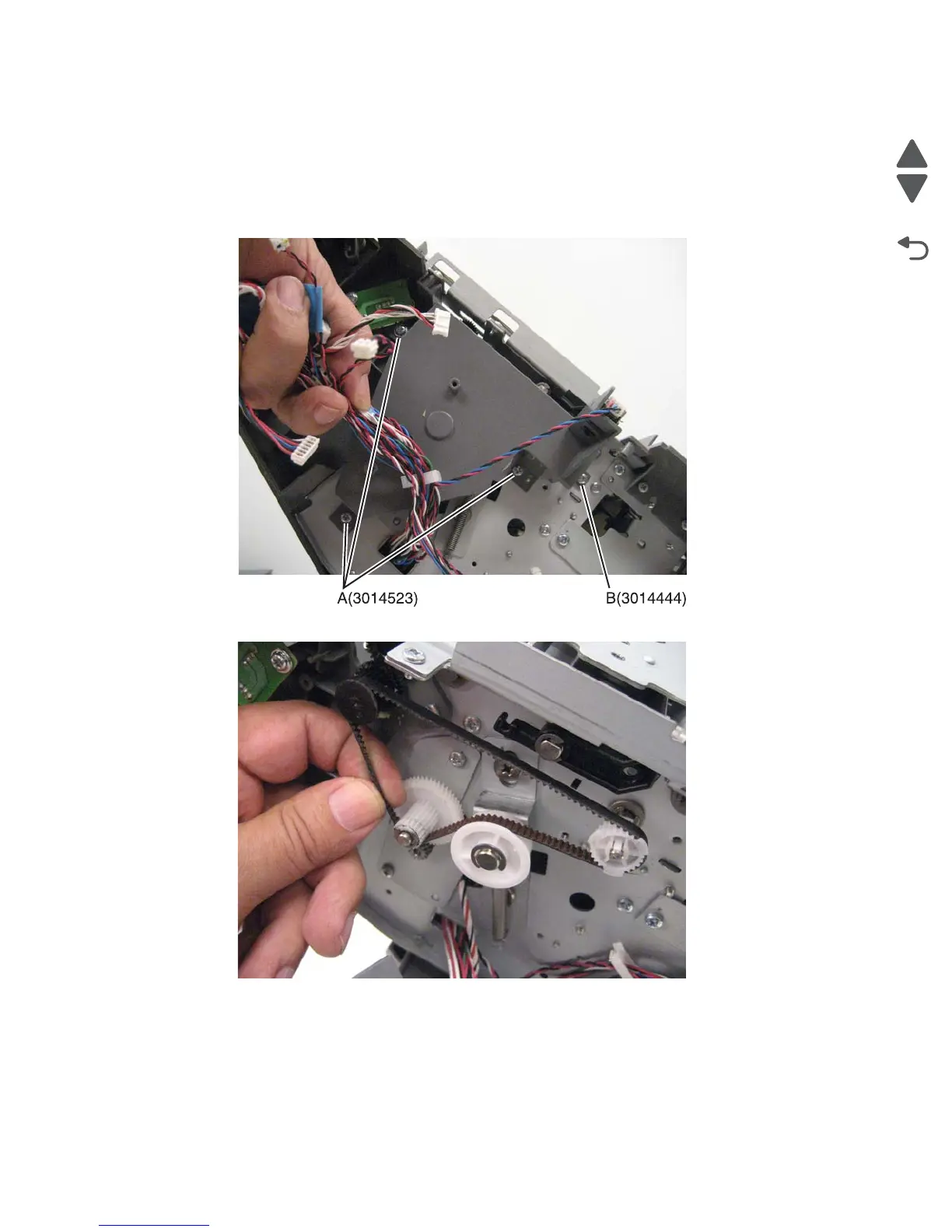

3. Remove three screws (A) and one screw (B).

4. Slide the belt off the lowest gear.
