Preventive maintenance 6-3

5062

Go Back

Fuser drive assembly

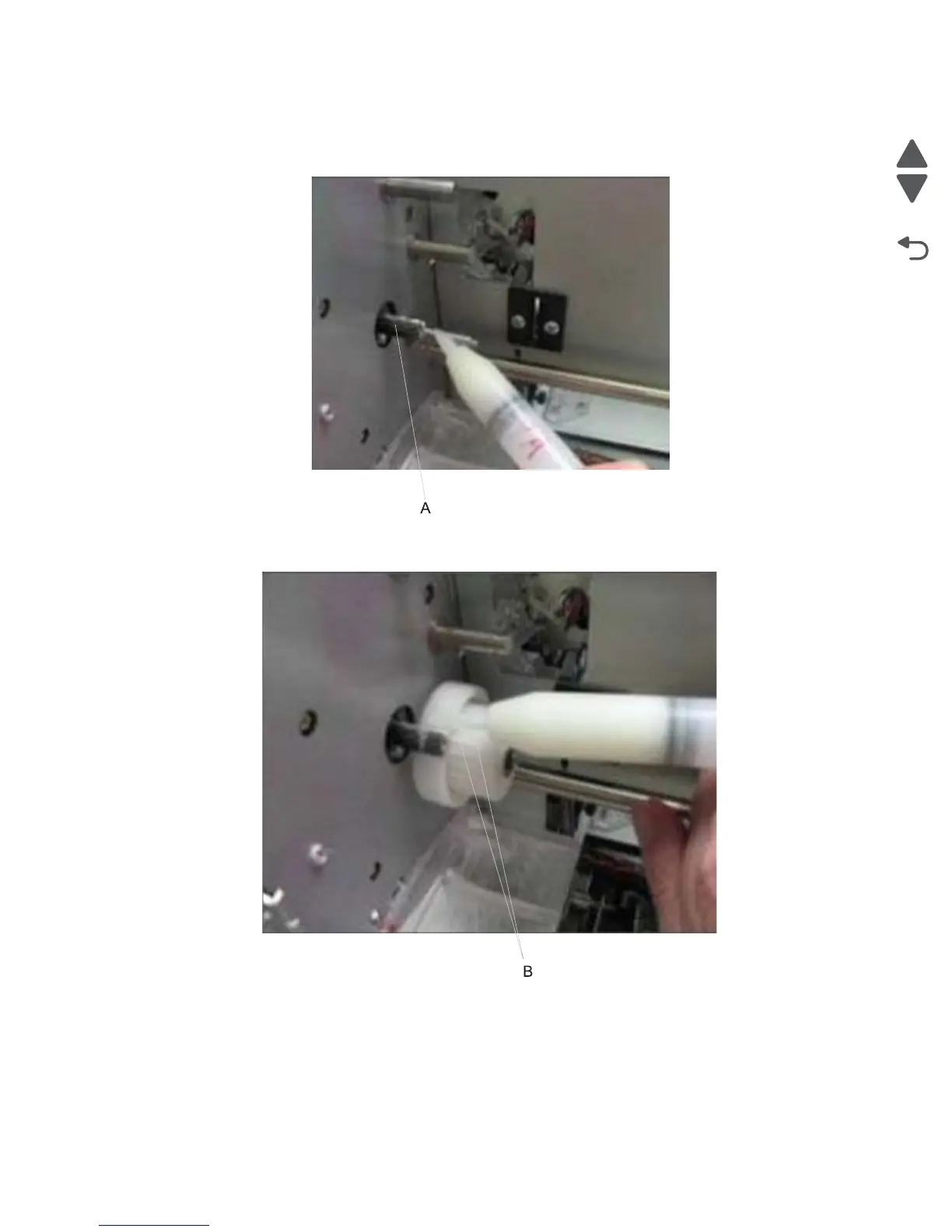

1. Using the 739A grease that came with the fuser drive assembly, lubricate the post (A).

2. Install the gear.

3. Using the 744 grease, lubricate the teeth (B) of the gear as shown.
