4-130 Service Manual
5062

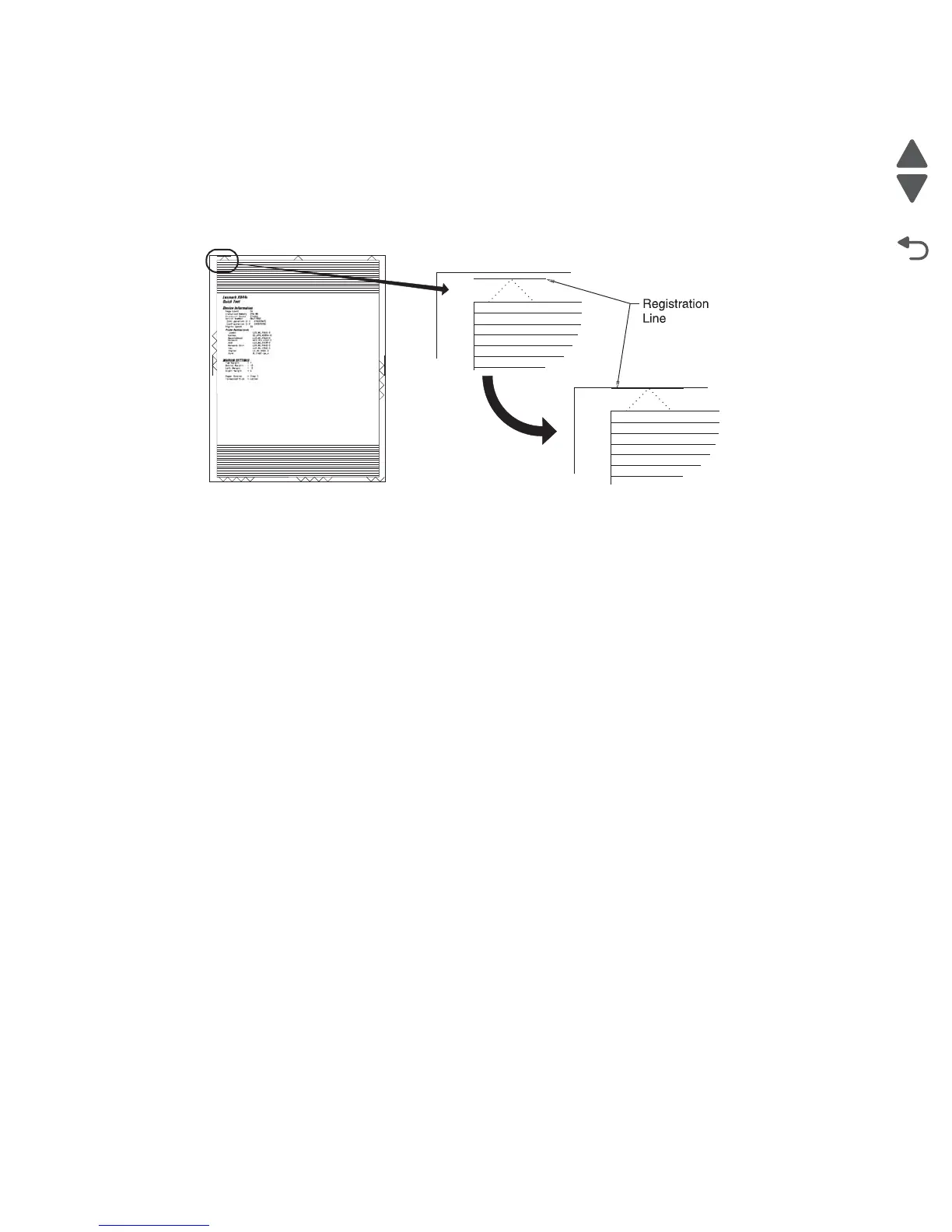

Registration (black)
Top Margin
1.
From the Diagnostic menu, navigate to:
REGISTRATION > Quick Test
An alignment test page prints.
2. Select Top Margin.
3. Adjust the values to move the top alignment marks to the top edge of the page.
• Increasing the value moves the alignment marks up the page.
• Decreasing the value moves the alignment marks down the page.
4. Reprint the test page and make adjustments as needed until you are satisfied with the alignment.
Bottom Margin
1.
Select Bottom Margin.
2. Adjust the bottom margin until the points of the bottom margin alignment marks are visible and touching
the edge of the paper.
• Increasing the value moves the alignment marks down the page.
• Decreasing the value moves the alignment marks up the page.
3. Reprint the test page and make adjustments as needed until you are satisfied with the alignment.
Left Margin
1.
Select Left Margin.
2. Adjust the left margin until the points of the left alignment marks touch the edge of the page.
• Increasing the value moves the alignment marks to the left.
• Decreasing the value moves the alignment marks to the right.
3. Reprint the test page and make adjustments as needed until you are satisfied with the alignment.
Right Margin
1.
Select Right Margin.
2. Adjust the right margin until the points of the left alignment marks touch the edge of the page.
• Increasing the value moves the alignment marks to the right.
• Decreasing the value moves the alignment marks to the left.
3. Reprint the test page and make adjustments as needed until you are satisfied with the alignment.
4. When the registration is complete, proceed to the color alignment.
