4-184 Service Manual

5062

Go Back

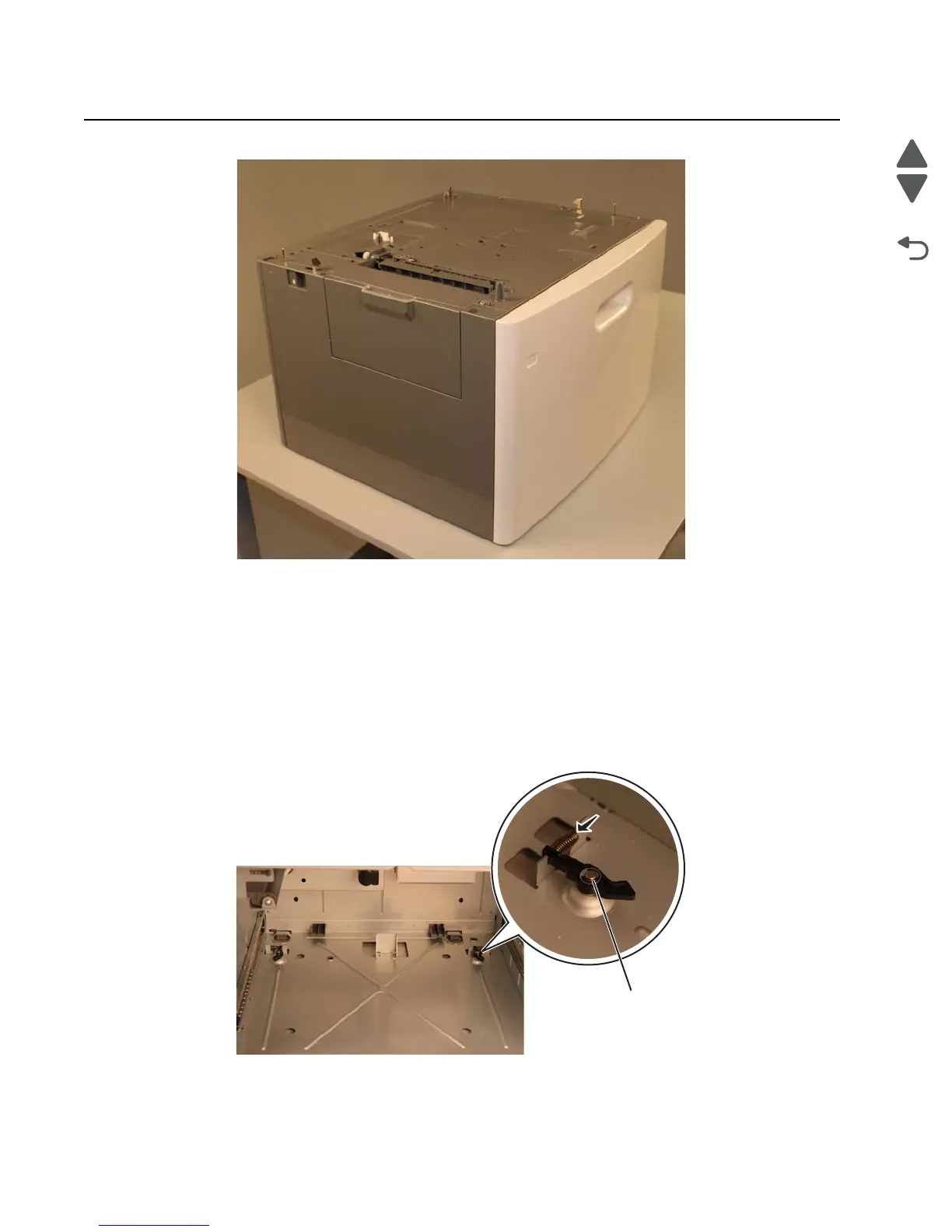

2000-sheet high-capacity feeder

Note: Carefully remove the 2000-sheet high-capacity feeder option from the base printer before proceeding.

2000-sheet high-capacity feeder bellcrank assembly removal

See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.

1. Remove the media tray assembly. See “2000-sheet high-capacity feeder media tray assembly

removal” on page 4-215.

2. Remove the recoil spring from the bellcrank.

3. Remove the E-clip (A) securing the bellcrank to the frame.

4. Remove the bellcrank.

5. Repeat steps 2-4 to remove the bellcrank on the other side.
