HTU output bin removal
1. Remove the output option from the HTU.

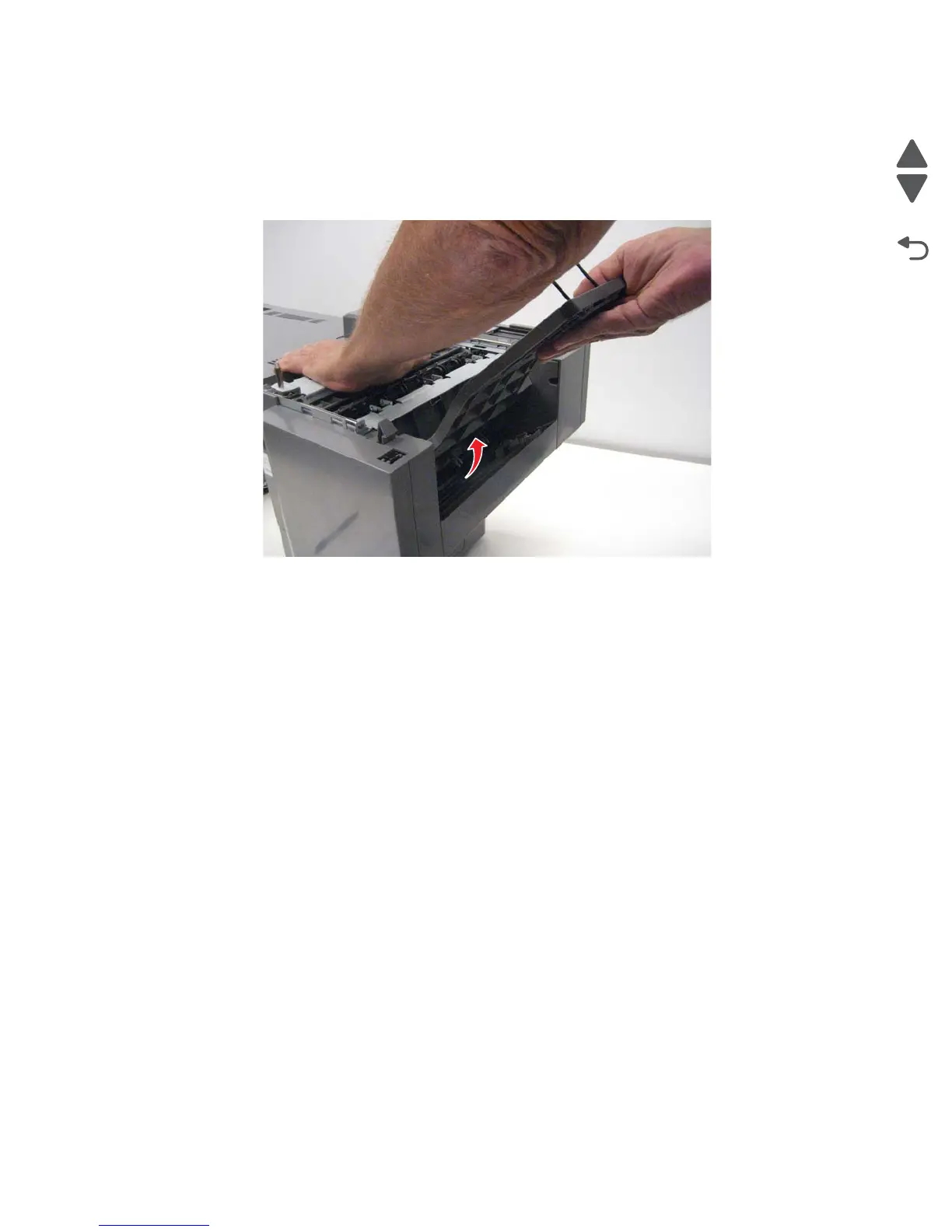

2. Rotate the bin up, and then pull back to remove it.
Installation note: If you are replacing the output bin FRU, then remove the wire stop. See “HTU output bin
wire stop removal” on page 4-305.
HTU output bin extension removal
1. Remove the output bin wire stop. “HTU output bin wire stop removal” on page 4-305.
2. Extend the extension until it stops.
