4-70 Service Manual

5062

Go Back

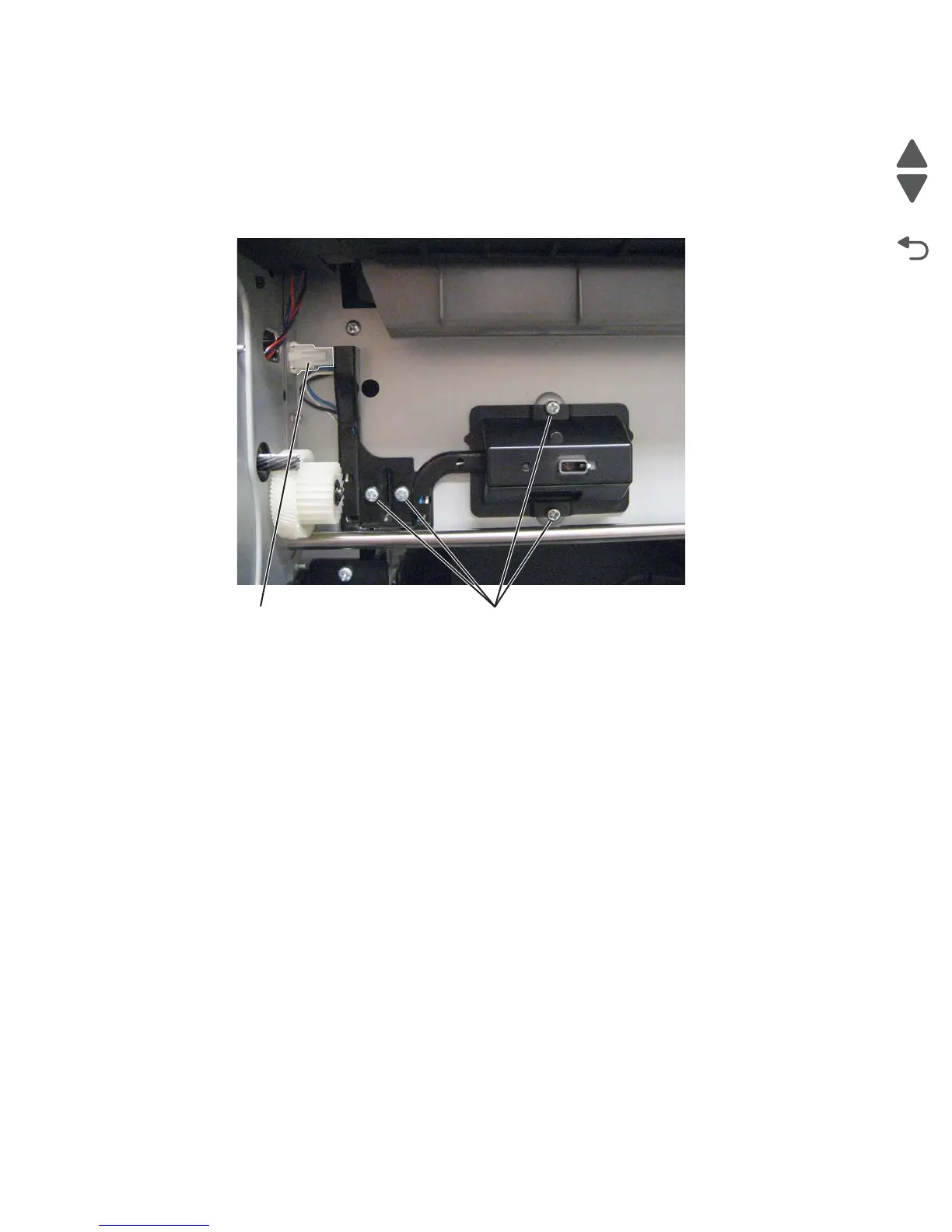

Fuser thermistor removal

See “Fuser thermal guide assembly” on page 7-58 for the part number.

1. Remove the fuser. See “Fuser assembly removal” on page 4-63.

2. Disconnect the cable (A).

3. Remove four screws (B) to remove the thermistor.

A B (88A0212)
