Horizontal transport unit (HTU) and Holepunch unit
HTU access door removal
1. Remove all output options from the printer.

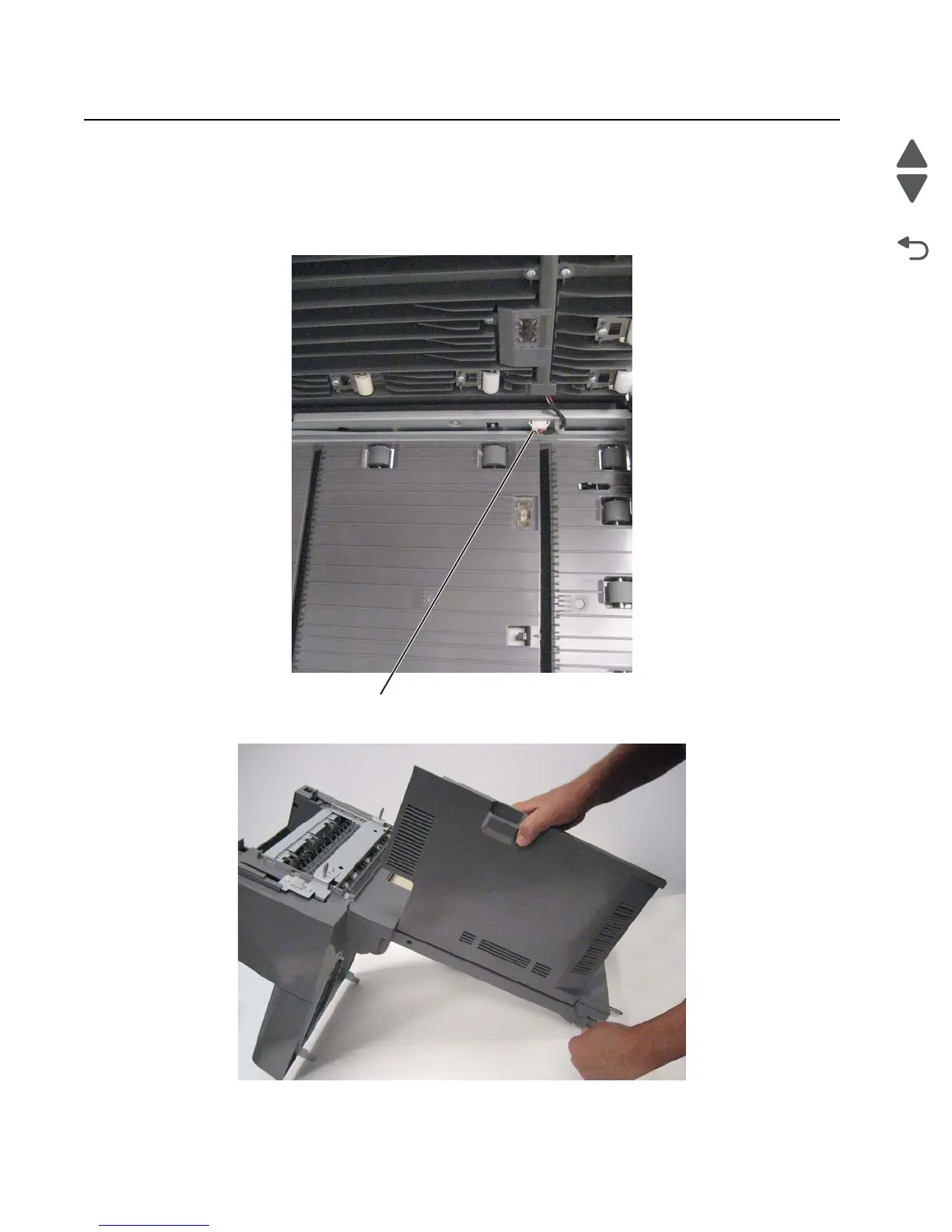

2. Open the access door, and disconnect the beacon cable.
3. Insert a flat-blade screwdriver below the bottom hinge, and flex the door enough to pull out the hinge.
4. Remove the door.
A
