Lexmark C792 series - Sensor (D1, D2, and Fuser Bubble) Removal

To Next Page

To Previous Page

Repair information 4-137

5062

Go Back

Sensor (D1, D2, and fuser bubble) removal

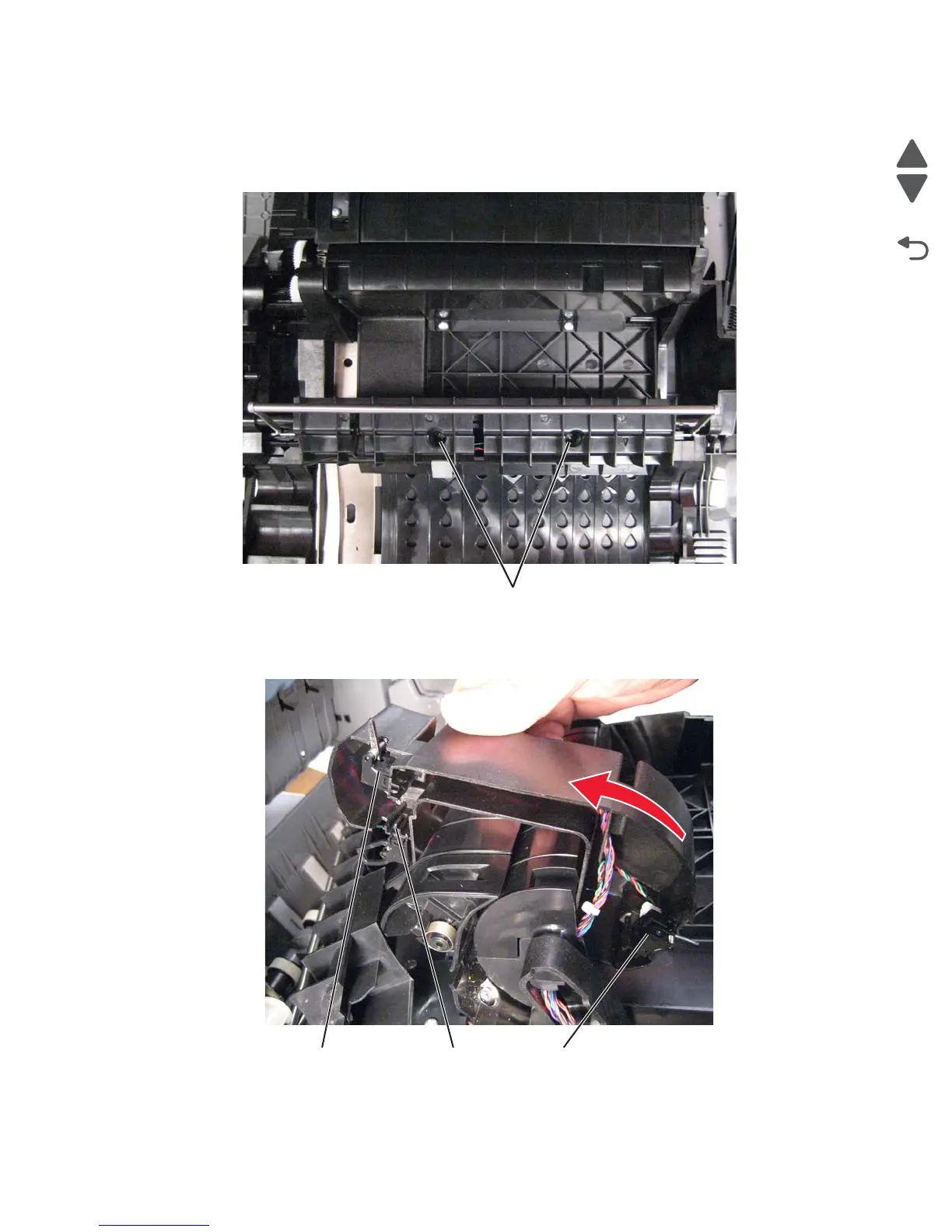

1. Open the left access door.

2. Remove two screws (A) from the duplex unit, and remove the rail cover.

3. Pull out the sensor assembly, and rotate it up.

4. Slide out the sensor you are replacing: fuser bubble (A), D1 (B), D2 (C).

ABC
