Media tray rail removal
See “Front (continued)” on page 7-9 for the part number.
1. Remove the standard media tray. See “Standard media tray removal” on page 4-150.
2. Remove the waste toner container. See “Waste toner container removal” on page 4-158.
3. Remove the print cartridges.
4. Remove the rail.
Left rail
a.
Shut the front access door.
b. Gently lay the printer on its back.

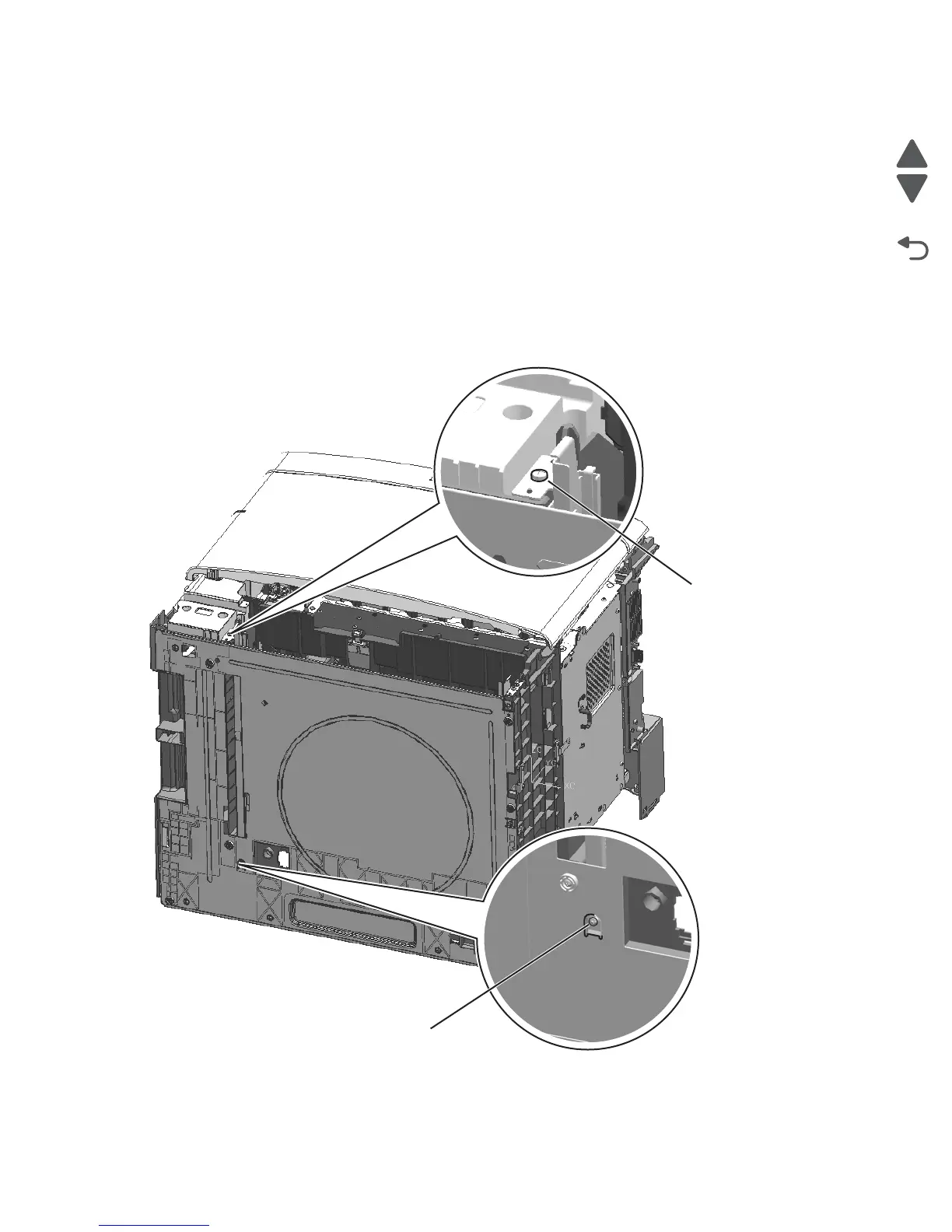

c. Remove the screw (A) on the bottom of the printer and the screw (B) on the front.
A (10J1046)
B (88A0323)
