Repair information 4-275
5062
Finisher or stacker sensor (pass thru) removal
See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.
1. Remove the finisher from the printer.
2. Remove the finisher rear cover. See “Finisher or stacker rear cover removal” on page 4-269.
3. Remove the finisher front cover. See “Finisher or stacker front cover removal” on page 4-260.

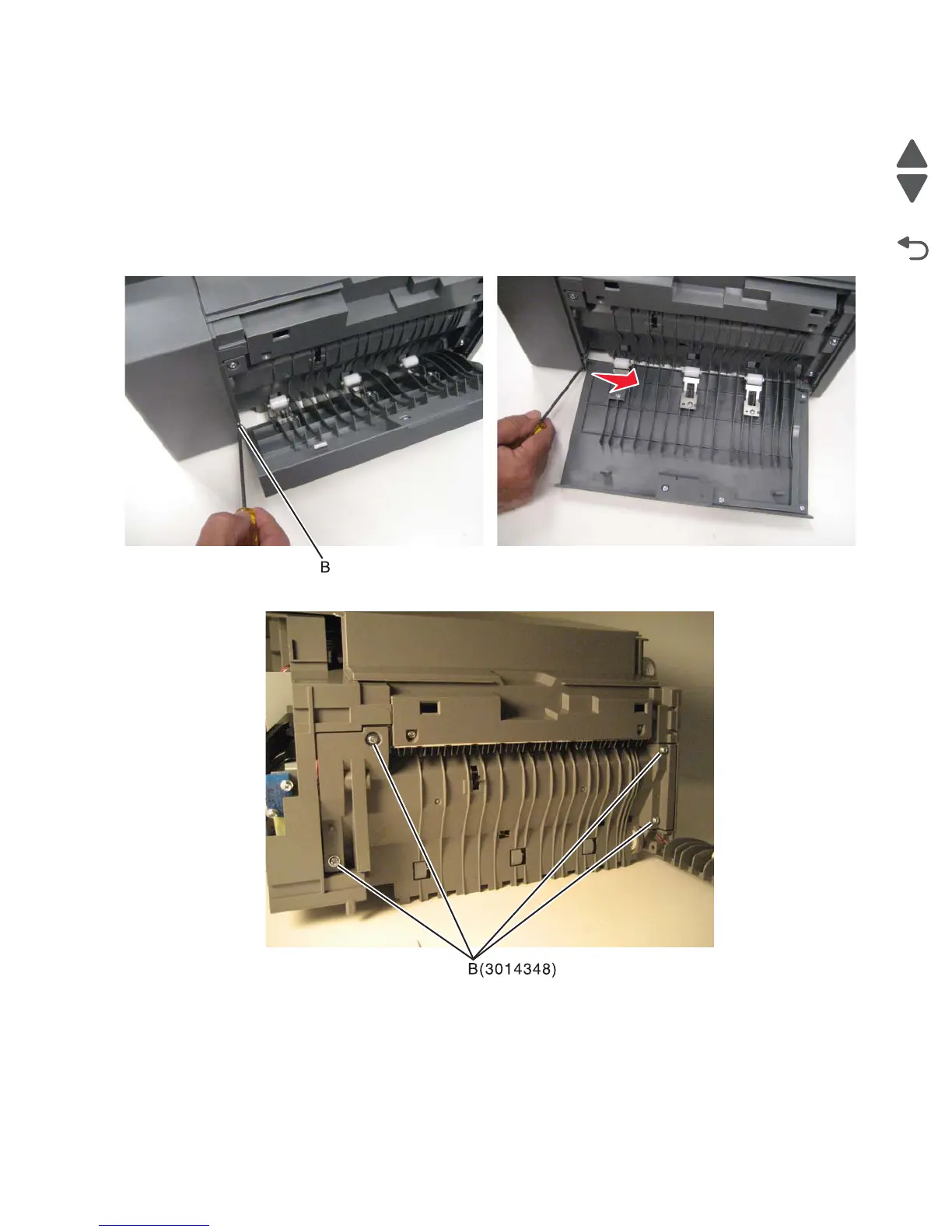

4. Open the left access door, and pry out the left hinge (A) to lower the door.
5. Push the door to the right to release the left hinge, and then release the right hinge.
6. Remove the four screws (B), and pull out the deflector plate.
7. Disconnect the cable (C) from the sensor.
8. Remove the screw (D) to remove the sensor bracket.
