Top cover removal
See “Top, right, and front covers” on page 7-3 for the part number.
1. Remove the printhead access cover. See “Printhead access cover removal” on page 4-19.
2. Remove the rear cover. See “Rear cover removal” on page 4-20.

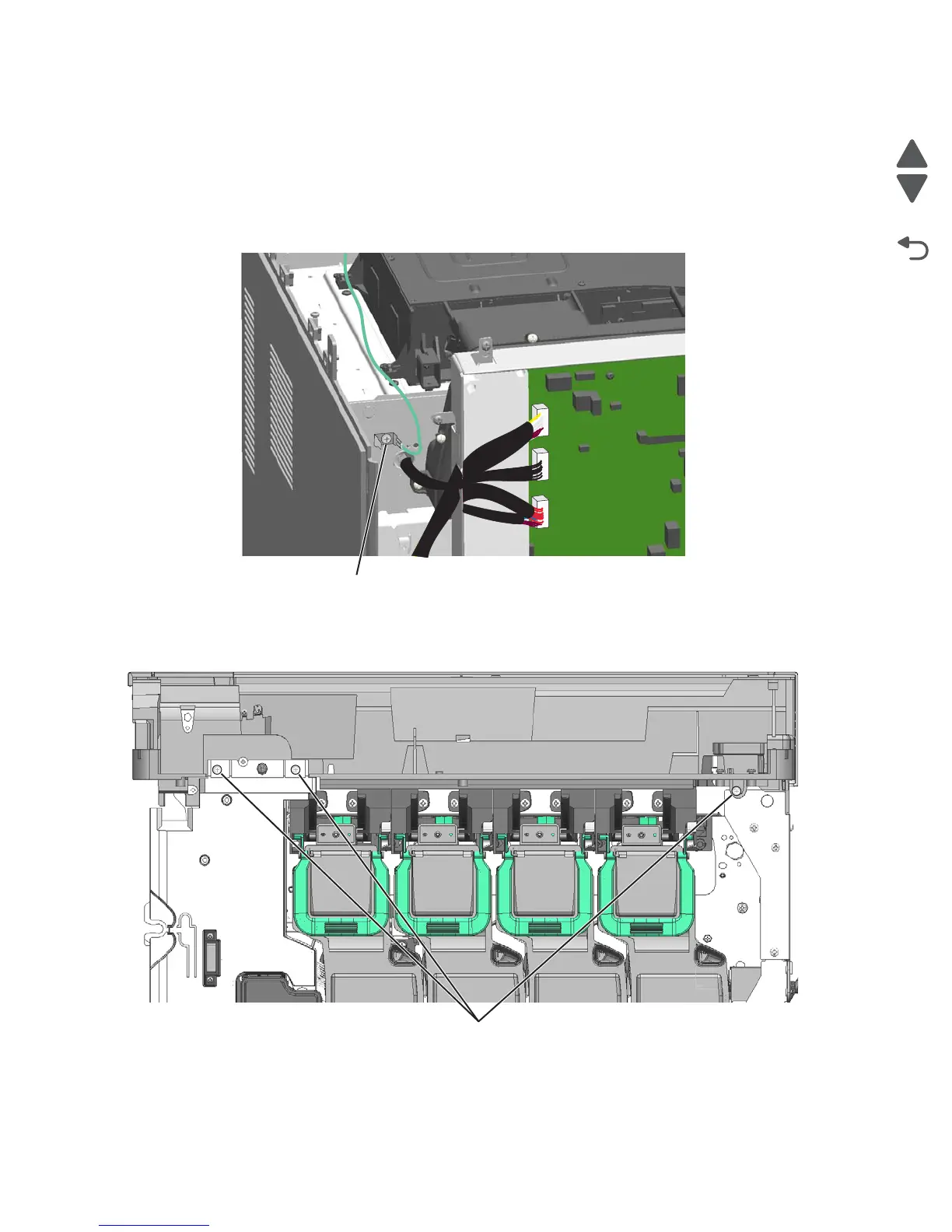

3. Remove the screw (A) to disconnect the ground cable.
4. Remove the front access door. See “Front access door assembly removal” on page 4-3.
5. Remove three screws on the front (B).
A (880A0212)
B (88A0323)
