Lexmark C792 series - Waste Toner Full Sensor Removal

To Next Page

To Previous Page

4-162 Service Manual

5062

Go Back

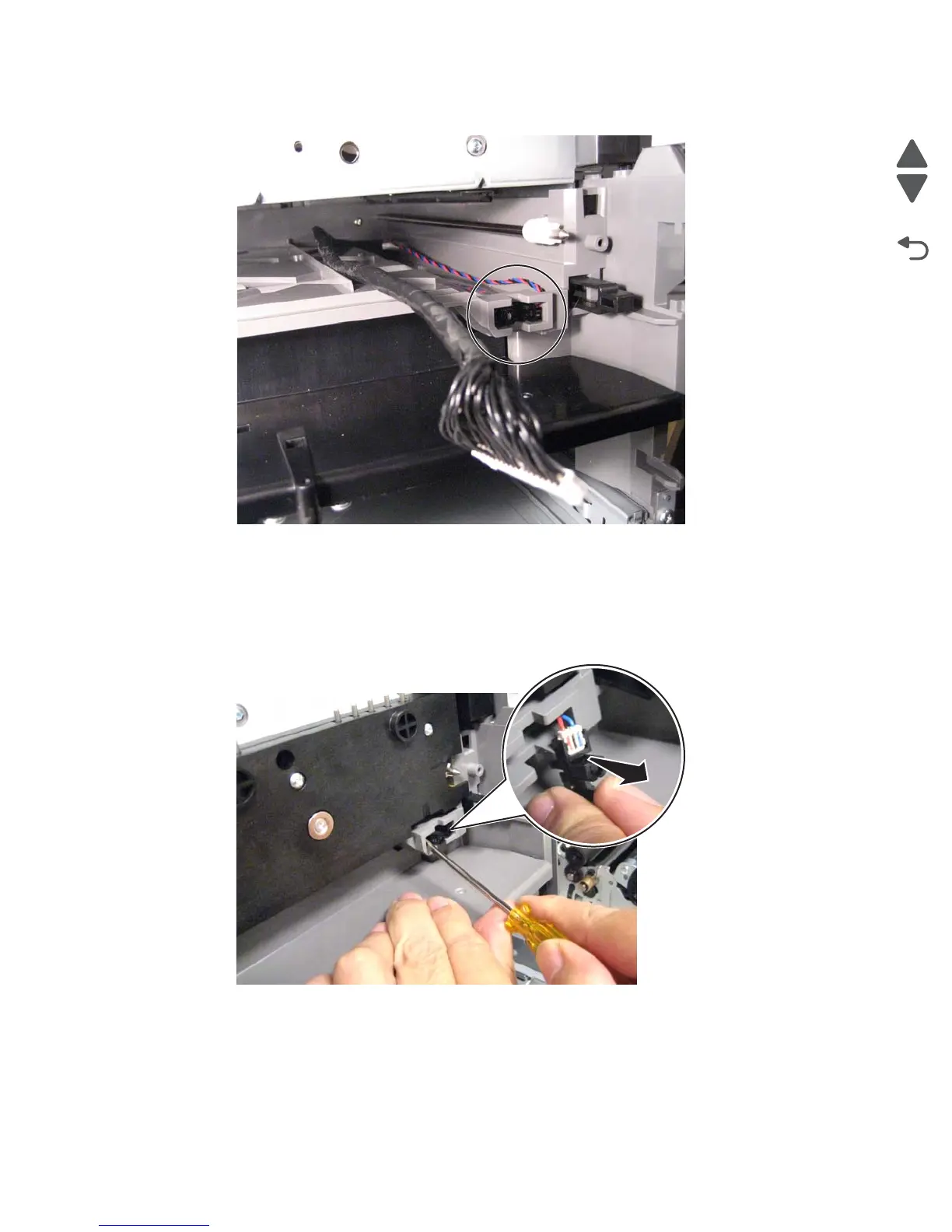

4. Disconnect the cable from the sensor, and pull the cable through the frame.

Waste toner full sensor removal

See “Front” on page 7-7 for the part number.

1. Remove the waste toner container. See “Waste toner container removal” on page 4-158.

2. Pry out the sensor from the front, and disconnect the cable to remove the sensor.
