4-272 Service Manual
5062
Finisher or stacker sensor (bin-full send) removal
See “Finisher/High-capacity output stacker assembly” on page 7-25 for the part number.
1. Remove the option from the printer.
2. Remove the finisher or stacker controller card assembly. See “Finisher or stacker controller card
assembly removal” on page 4-258.

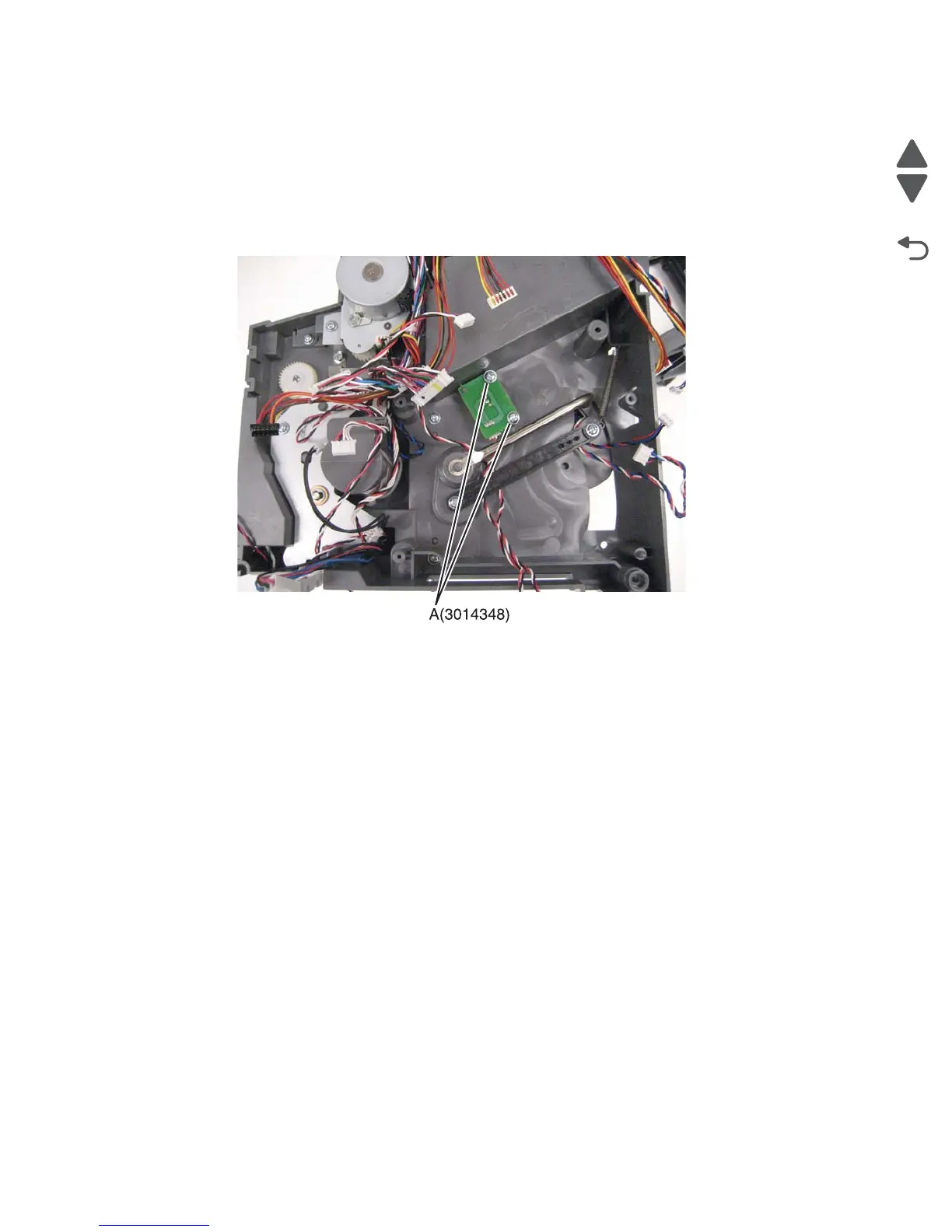

3. Remove the two screws (A) securing the sensor.
4. Disconnect the cable, and remove the sensor.
