Lexmark C792 series - Main Fan Removal

To Next Page

To Previous Page

4-92 Service Manual

5062

Go Back

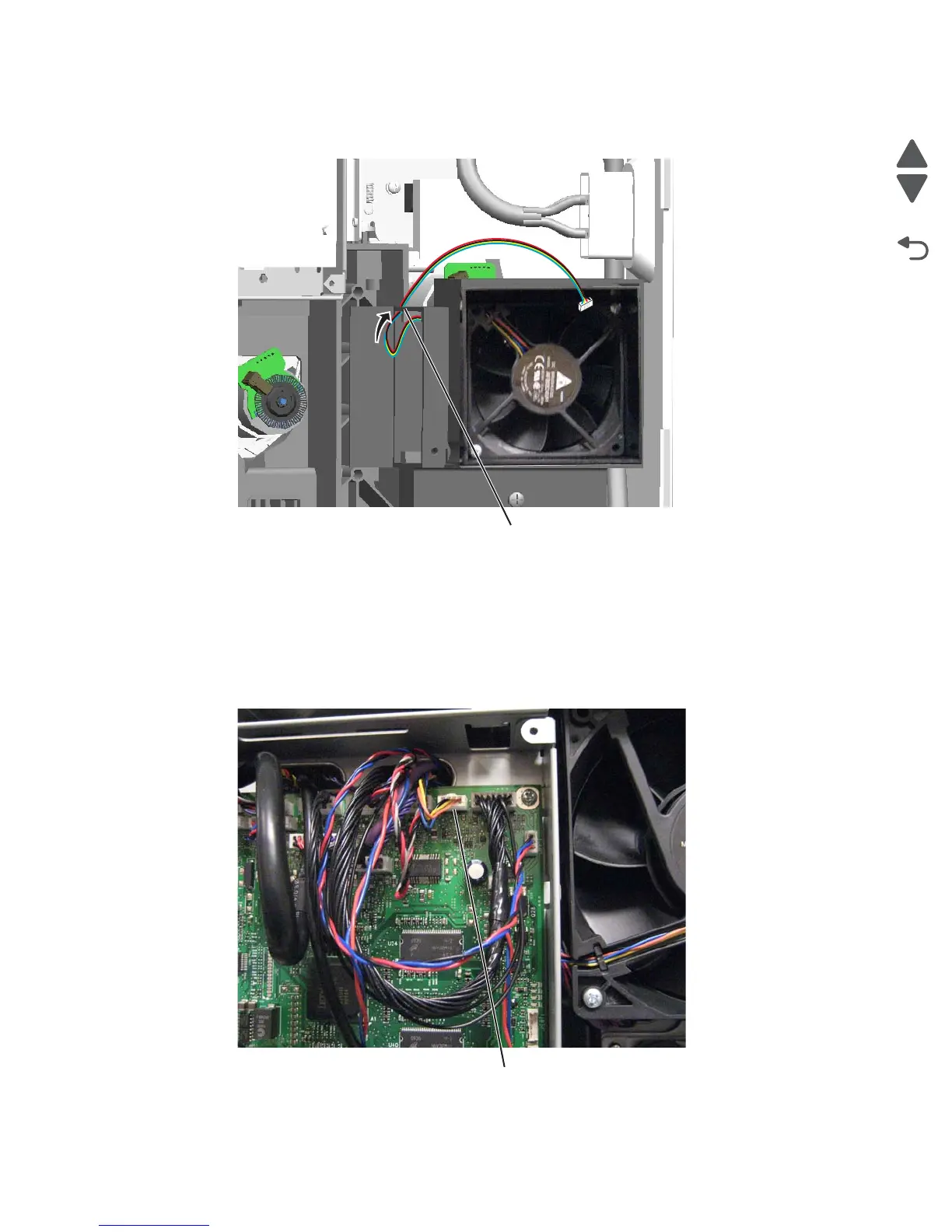

6. Feed the cable through the slot in the fan housing (D) as you remove the fan.

Main fan removal

See “Rear” on page 7-15 for the part number.

1. Remove the rear cover. See “Rear cover removal” on page 4-20.

2. Disconnect the fan cable (A) from the system board.
