Lexmark C792 series - 2000-Sheet High-Capacity Feeder Elevator Home Sensor Removal

To Next Page

To Previous Page

4-190 Service Manual

5062

Go Back

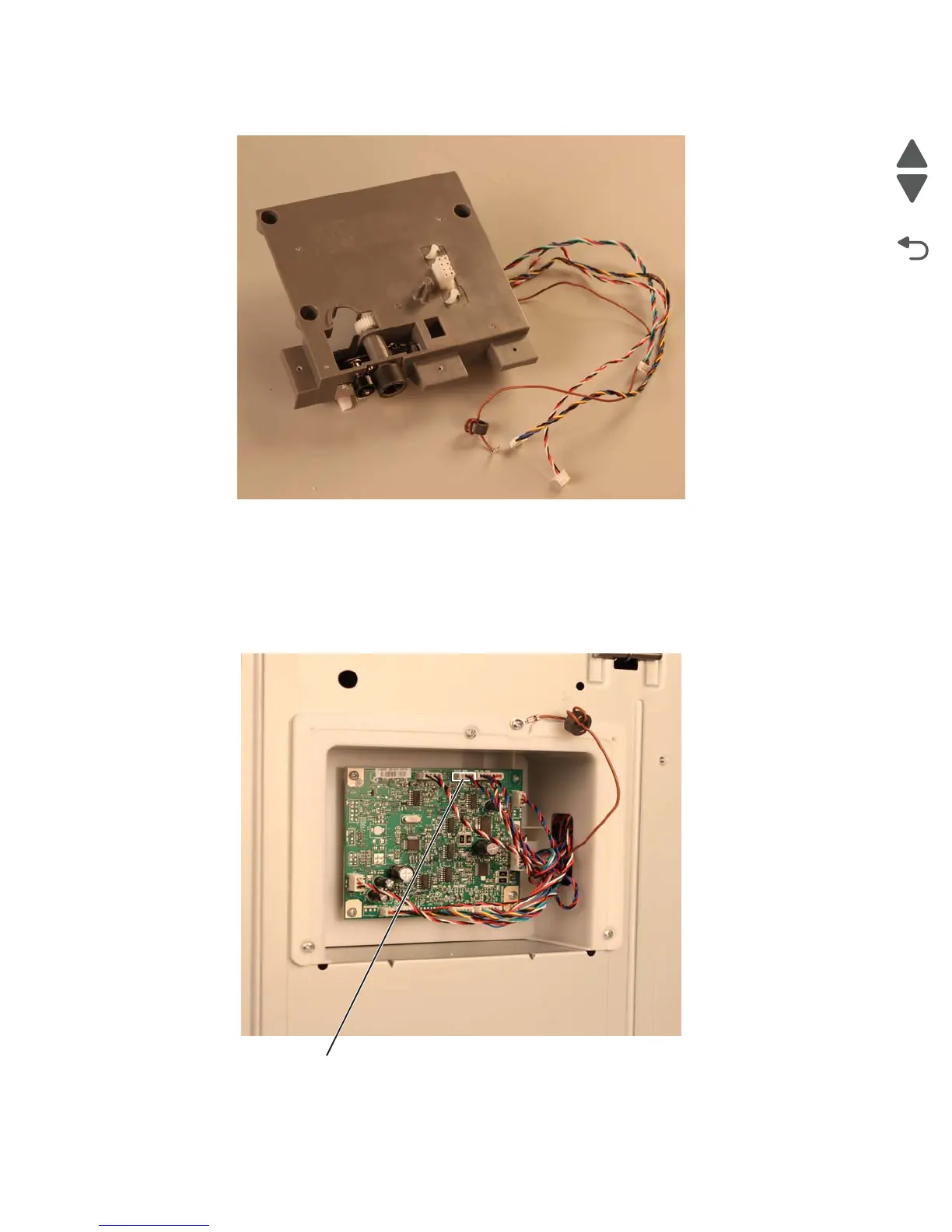

This is the photo of the 2000-sheet high-capacity feeder drive assembly.

2000-sheet high-capacity feeder elevator home sensor removal

See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.

1. Remove the rear cover. See “2000-sheet high-capacity feeder rear cover removal” on page 4-228.

2. Open the media tray assembly.

3. Disconnect the elevator home sensor connector (A) from the controller card assembly.
