Cartridge contact block assembly removal
See “Front (continued)” on page 7-9 for the part number.
1. Remove the waste toner container. See “Waste toner container removal” on page 4-158.
2. Remove the print cartridges.

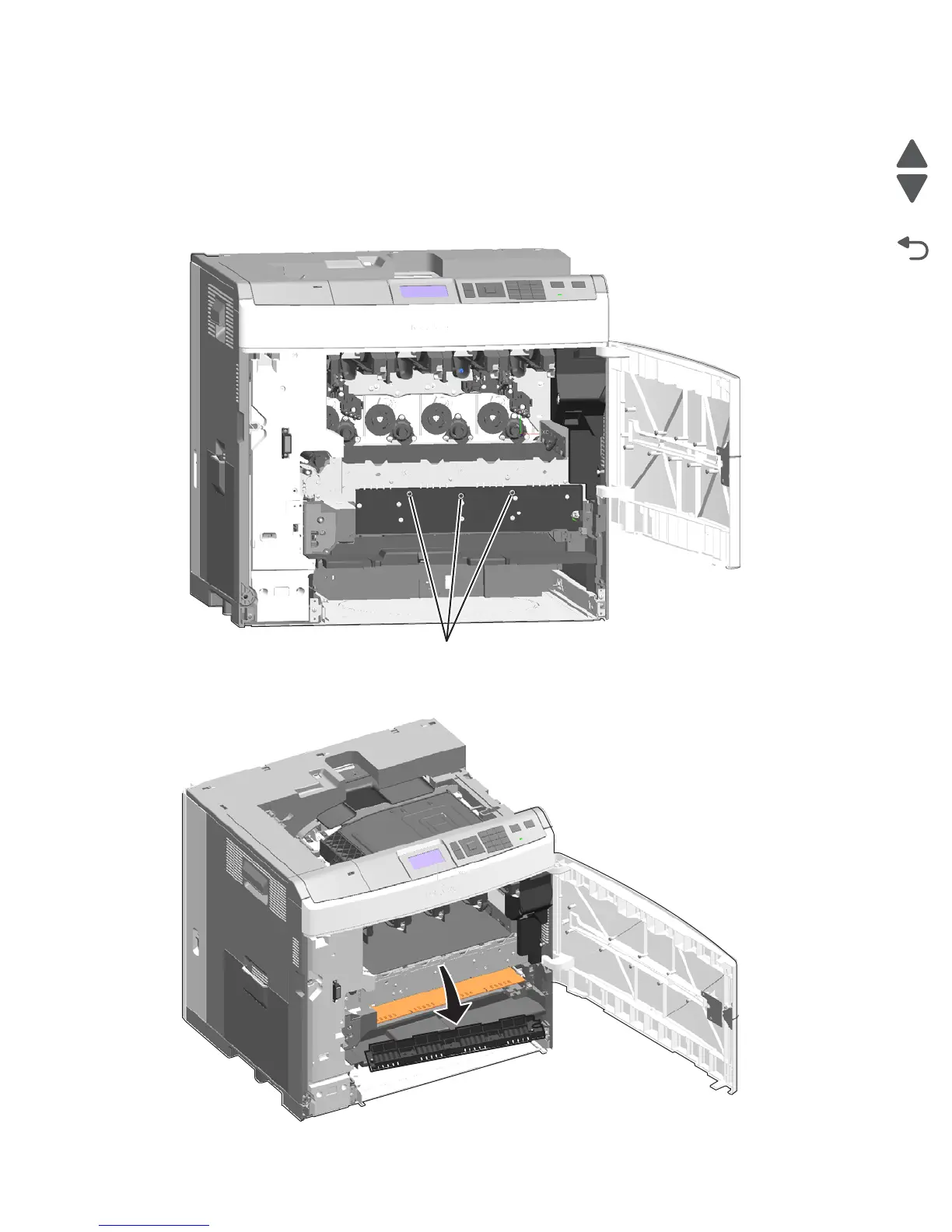

3. Remove the three screws (A) from the cartridge contact block assembly.
4. Remove the assembly.
A (88A0212)
