Lexmark C792 series - 550-Sheet Tray Pass Thru Sensor Removal

To Next Page

To Previous Page

Repair information 4-175

5062

Go Back

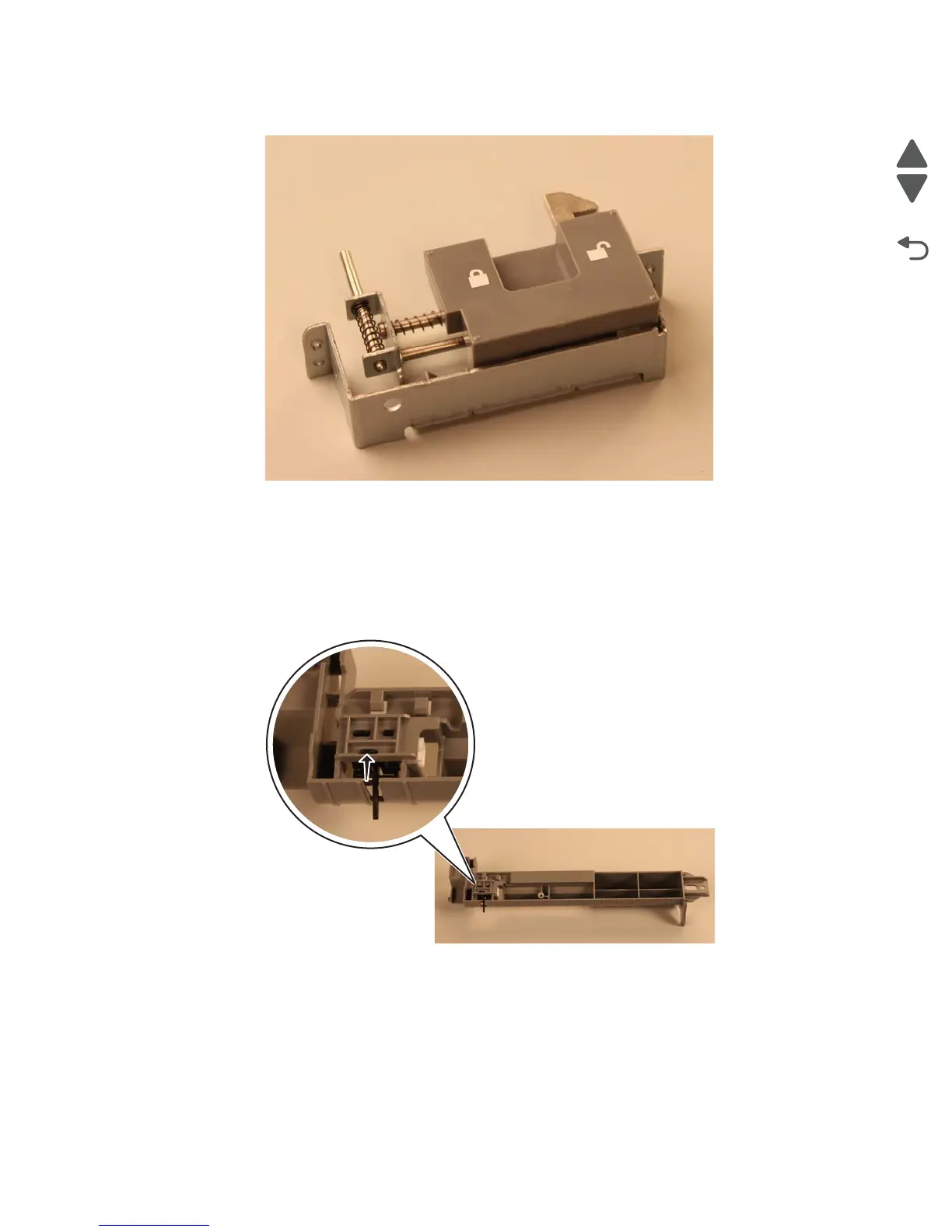

5. Remove the left anti-tip latch assembly.

550-sheet tray pass thru sensor removal

See“Optional 550-sheet drawer assembly” on page 7-19 for the part number.

1. Remove the top metal cover. See “550-sheet tray top metal cover removal” on page 4-183.

2. Remove the deflector. See “550-sheet tray deflector removal” on page 4-169.

3. Release the latch securing the pass thru sensor to the deflector.
