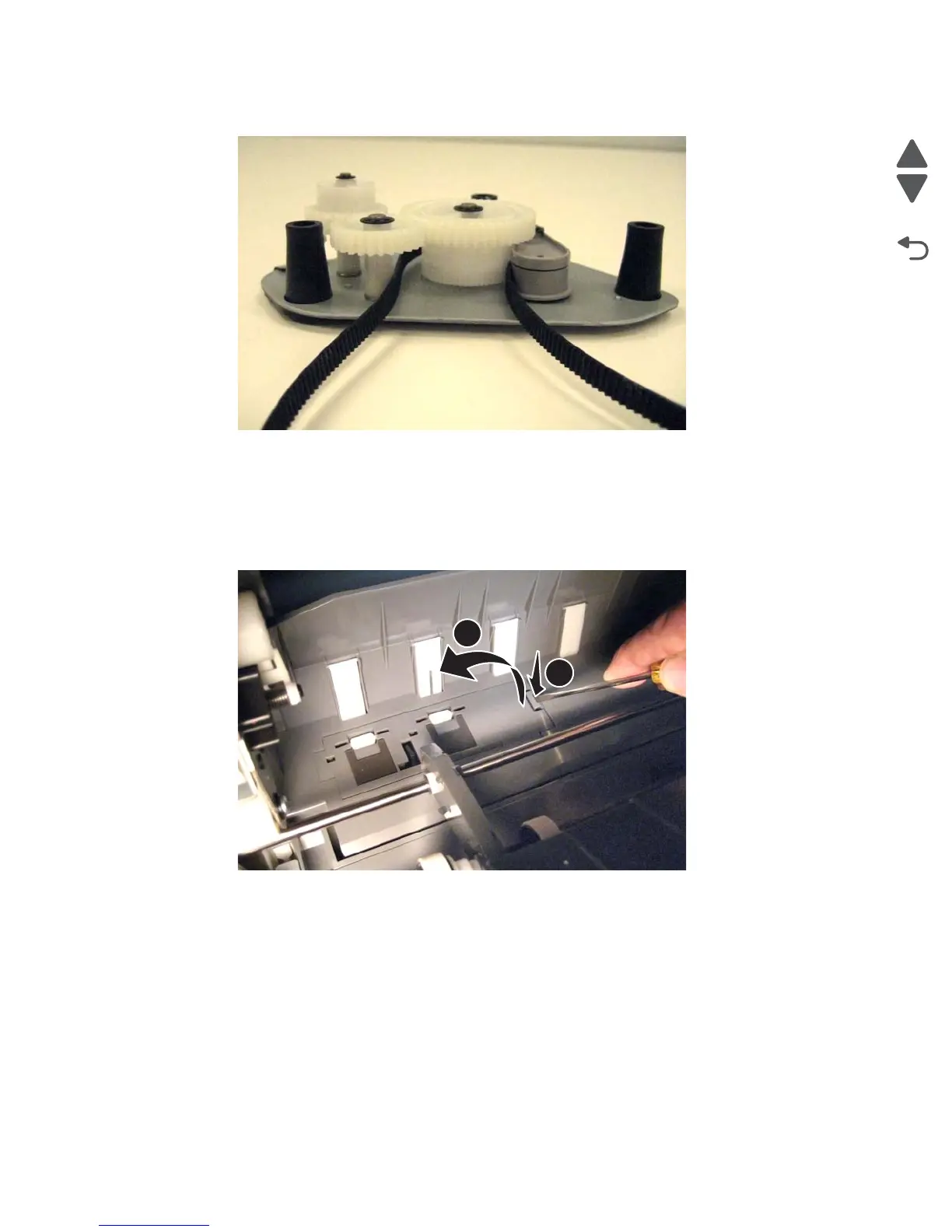

Installation note: When reinstalling the belt, be sure the belt sits on the teeth at the base of the gear.

MPF sensor plate assembly removal

See “Left and rear covers” on page 7-5 for the part number.

1. Open the left access door assembly.

2. Use a flat-blade screwdriver to push in the tab, and lift to remove the assembly.
