Repair information 4-107

5062

Go Back

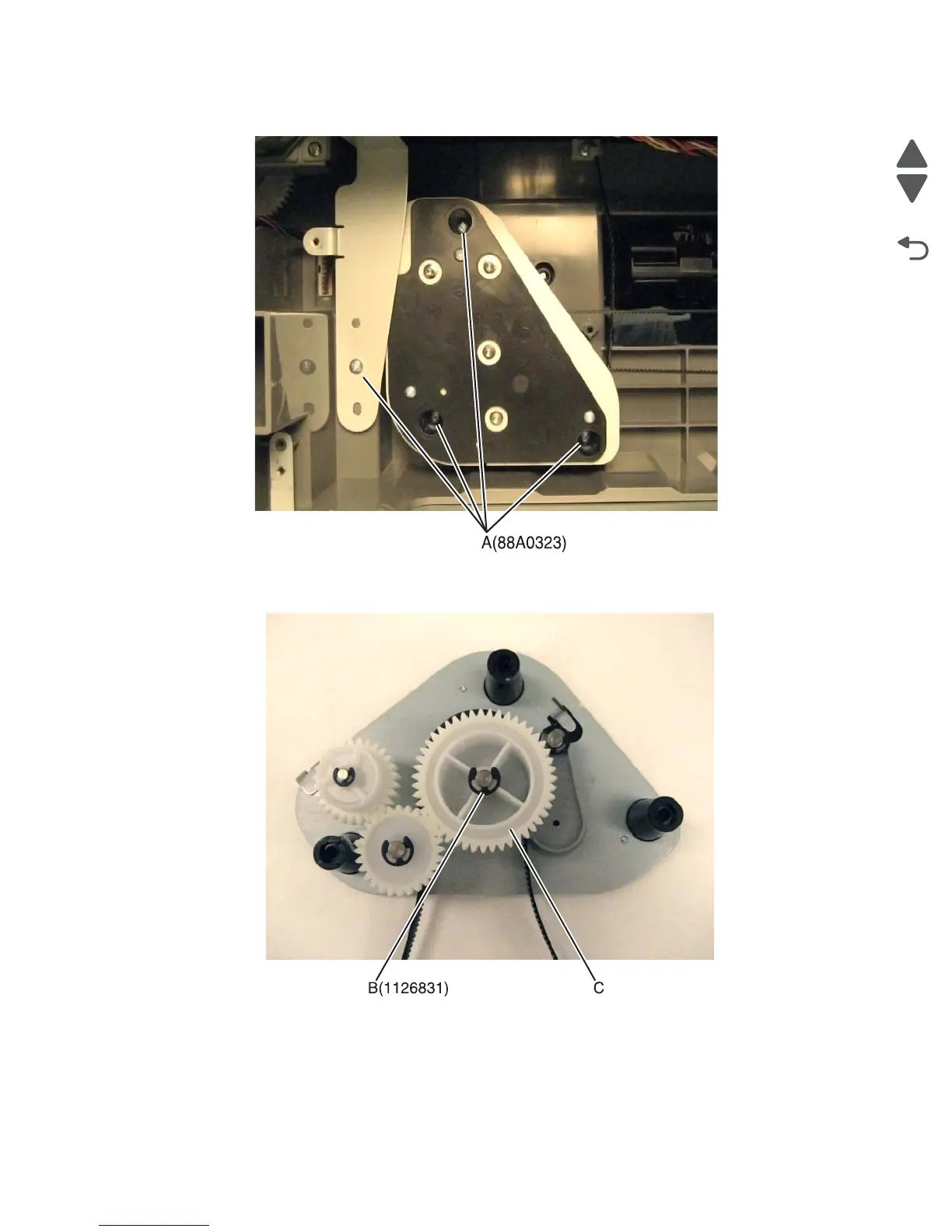

3. Remove four screws (A), and remove the assembly.

4. Remove the E-clip (B) and the gear (C) to remove the belt from the assembly.
