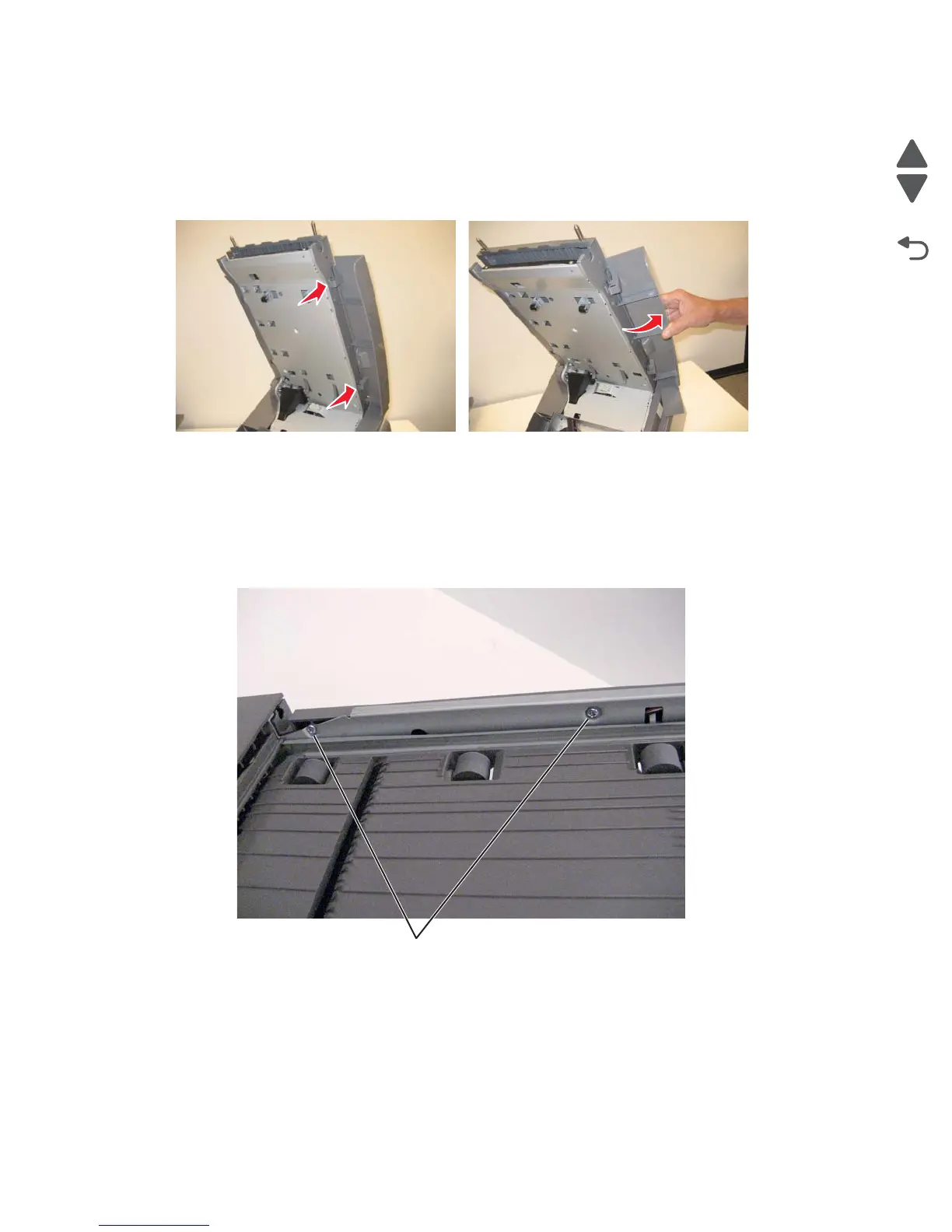

HTU outer front cover removal (AIO only)
1. Remove all output options from the printer.
2. Push up the tabs to release the latches, and rotate the cover up to remove it.
HTU rear redrive cover removal
1. Remove all output options from the printer.
2. Remove the access door. See “HTU access door removal” on page 4-282.
3. Remove the two screws (A) from the inside.
A (3015189)
