Lexmark C792 series - 550-Sheet Tray Pick Assembly Removal

To Next Page

To Previous Page

4-176 Service Manual

5062

Go Back

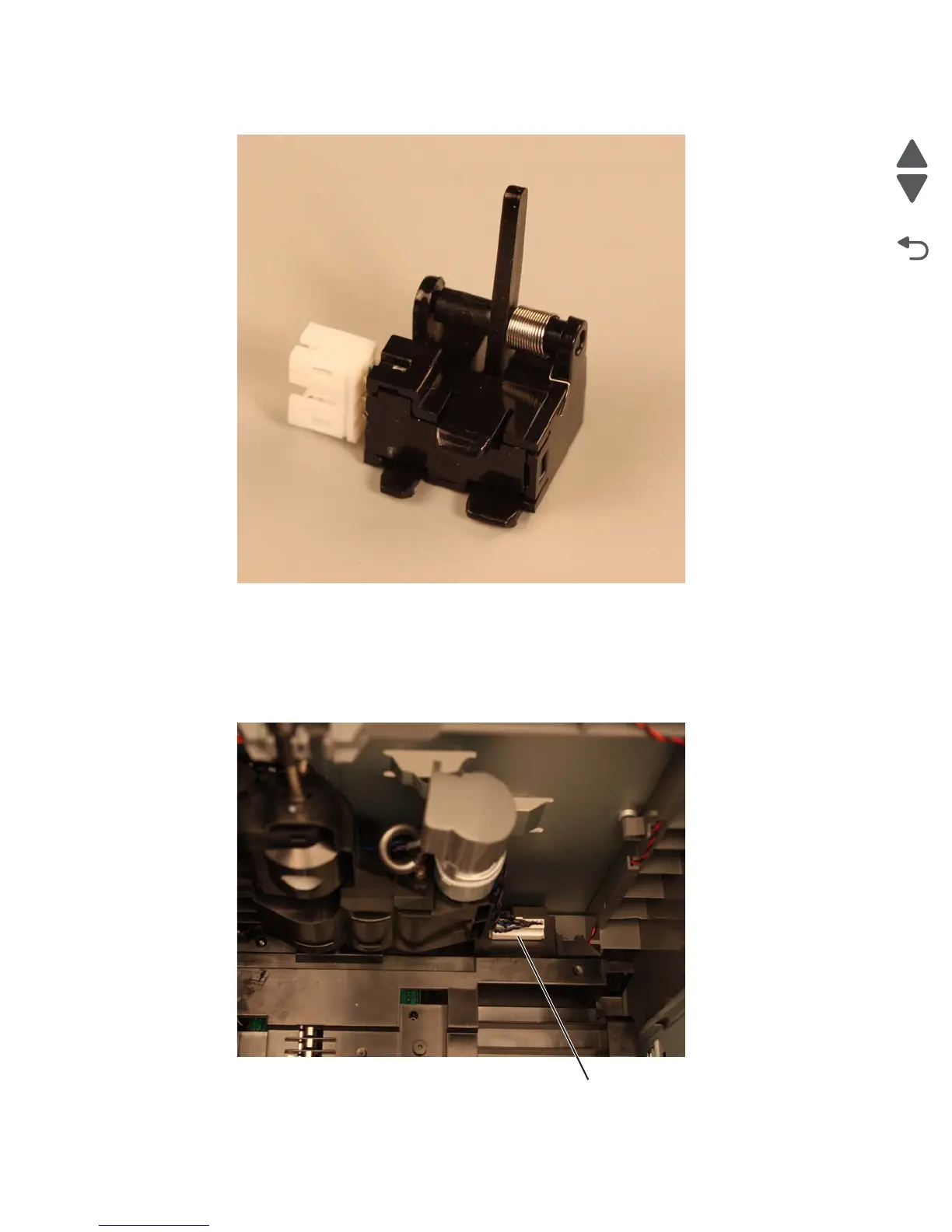

4. Remove the pass thru sensor.

550-sheet tray pick assembly removal

See“Optional 550-sheet drawer assembly” on page 7-19 for the part number.

1. Remove the media tray assembly. See “550-sheet media tray assembly removal” on page 4-166.

2. Disconnect the pick assembly connector (A) from the drive assembly.
