HTU option roller removal
1. Remove all output options from the printer.

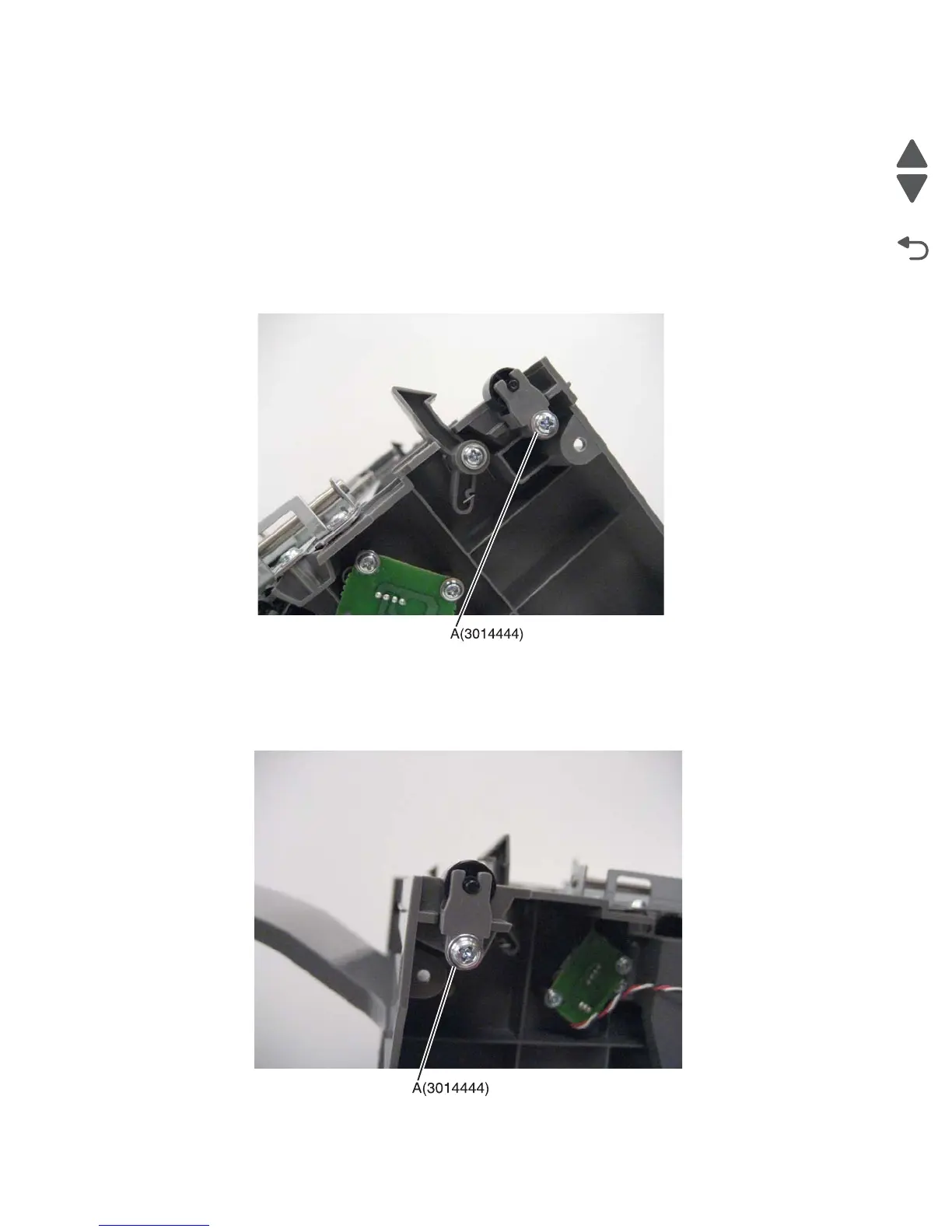

Front roller
a.
Remove the front standard bin cover. See “HTU front standard bin cover removal” on
page 4-294.
b. Remove the screw (A) to remove the roller.
Rear roller
a.
Remove the rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-312.
b. Remove the screw (A) to remove the roller.
