Lexmark C792 series - 550-Sheet Tray Deflector Removal

To Next Page

To Previous Page

Repair information 4-169

5062

Go Back

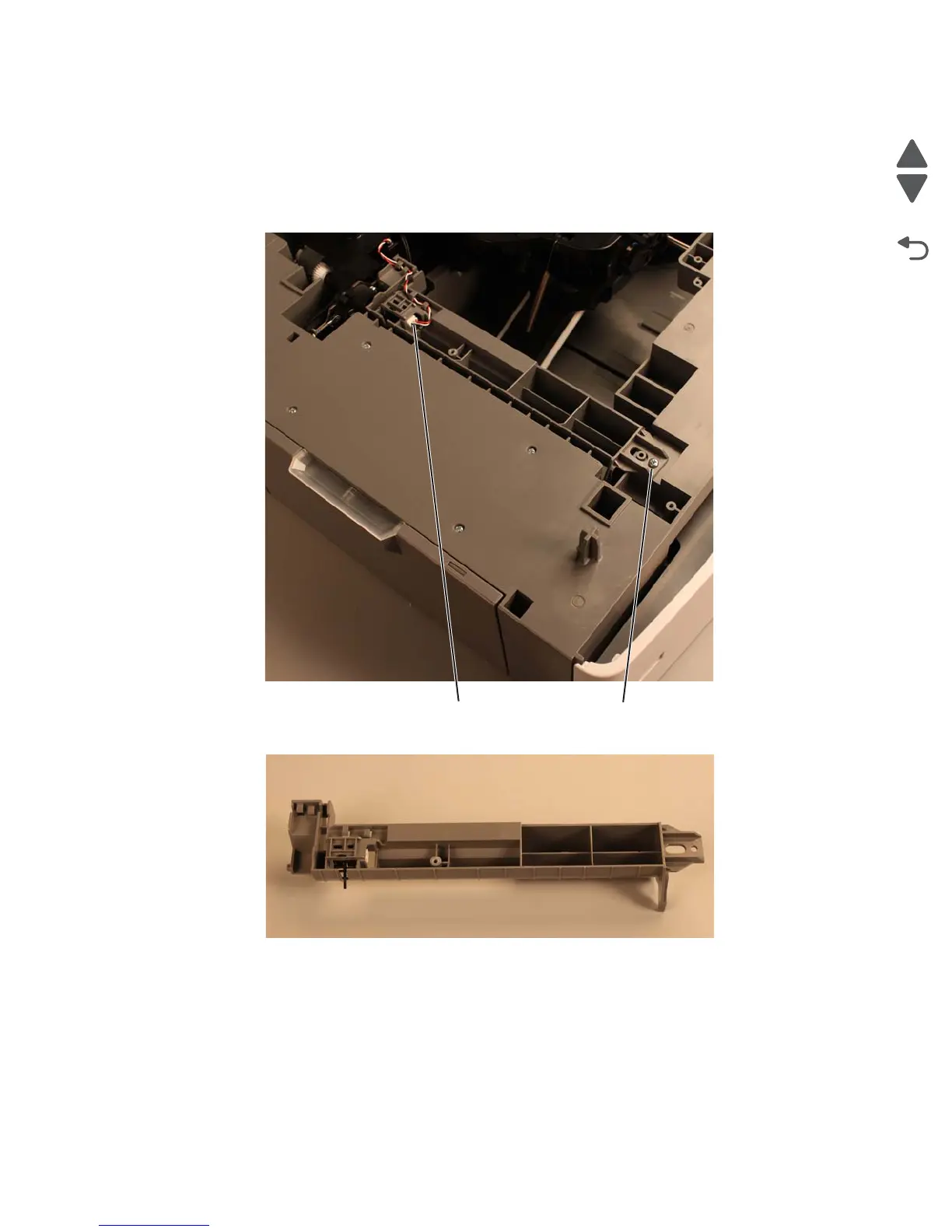

550-sheet tray deflector removal

1. Remove the top metal cover. See “550-sheet tray top metal cover removal” on page 4-183.

2. Disconnect the pass thru sensor connector (A) from the pass thru sensor.

3. Remove the pass thru sensor cable.

4. Remove the screw (B) securing the deflector to the drawer.

5. Remove the 550-sheet tray deflector.
