Lexmark C792 series - 550-Sheet Tray Controller Card Assembly Removal

Repair information 4-167
5062
Go Back
Previous
Next

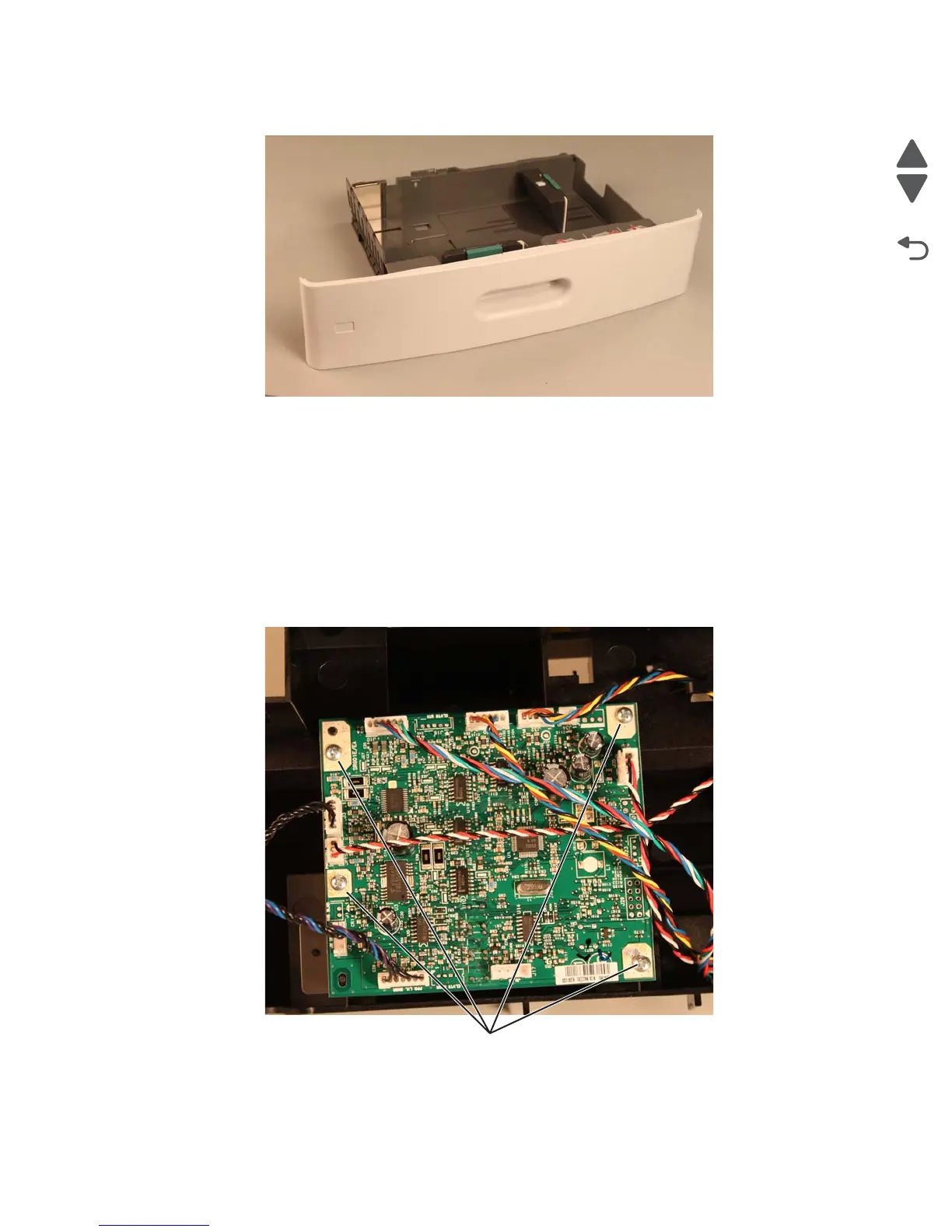

3. Slide the 550-sheet media tray assembly out of the drawer.
550-sheet tray controller card assembly removal
See“Optional 550-sheet drawer assembly” on page 7-19 for the part number.
1. Remove the media tray assembly. See “550-sheet media tray assembly removal” on page 4-166.
2. Remove the top metal cover. See “550-sheet tray top metal cover removal” on page 4-183.
3. Remove the deflector. See “550-sheet tray deflector removal” on page 4-169.
4. Remove the pick assembly. See “550-sheet tray pick assembly removal” on page 4-176.
5. Remove the drive assembly. See “550-sheet tray drive assembly removal” on page 4-170.
6. Disconnect all connectors from the controller card assembly.
7. Remove the four screws (A) securing the controller card assembly to the drive assembly.
A (88A0312)
