Repair information 4-245

5062

Go Back

5-bin mailbox option cable removal

1. Remove the mailbox from the printer.

2. Remove the rear cover. See “5-bin mailbox rear cover removal” on page 4-249.

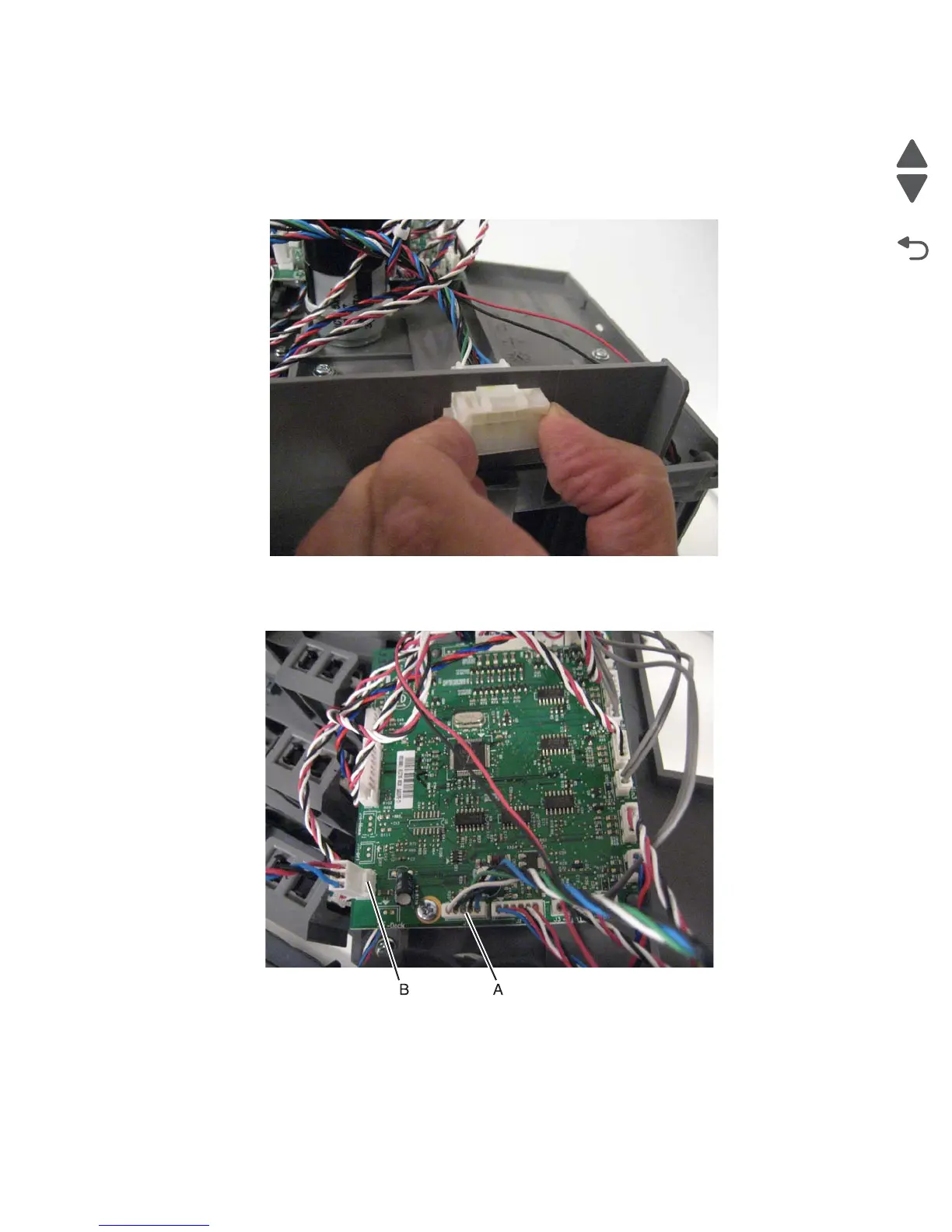

3. Press the tabs to release the cable, and push the cable through the frame.

4. Disconnect the cable (A) from the controller card, and press the latch to disconnect cable (B) from the

controller card.
