4-46 Service Manual
5062
Cartridge metering cable removal
See “M+K cartridge metering cable” on page 7-55 and “C+Y cartridge metering cable” on page 7-55 for the
part number.
1. Remove the system board shield. See “System board shield removal” on page 4-27.
2. Remove the ITU assembly. See “ITU assembly removal” on page 4-77.

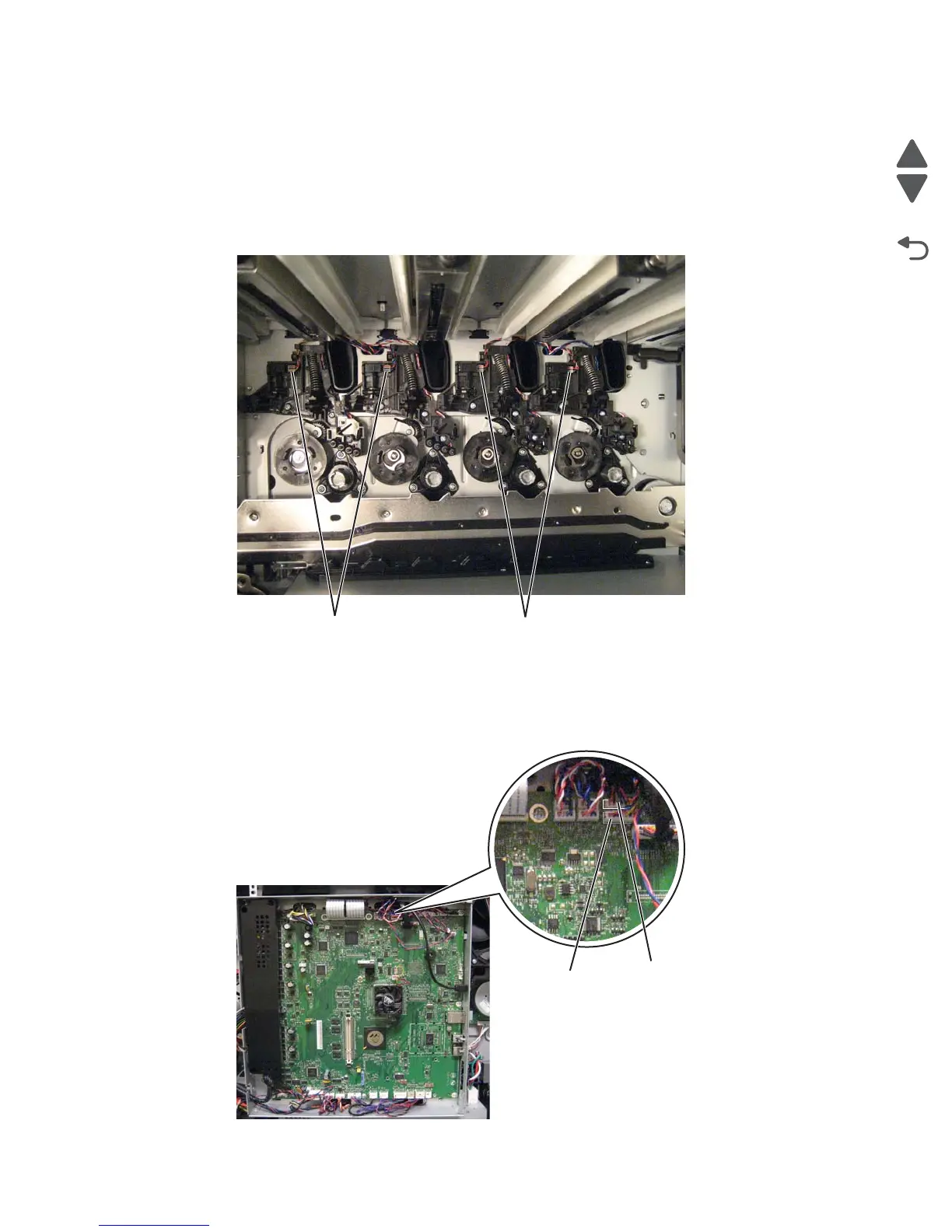

3. Disconnect the cyan & yellow cables (A) or the black & magenta cables (B) from the sensors.
Note: To easily route the new cable to the system board, tie a string (at least twelve inches long) to the end of
each sensor cable you disconnect. When you pull the cables through the printer, be careful to leave one end of
each string inside the printer and the other end on the system board.
4. Disconnect the cyan & yellow cable (C) or the black & magenta cable (D) from the system board, and then
pull the cable out of the printer.
