HTU bin diverter gate spring removal
1. Remove all output options from the printer.
2. Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-294.

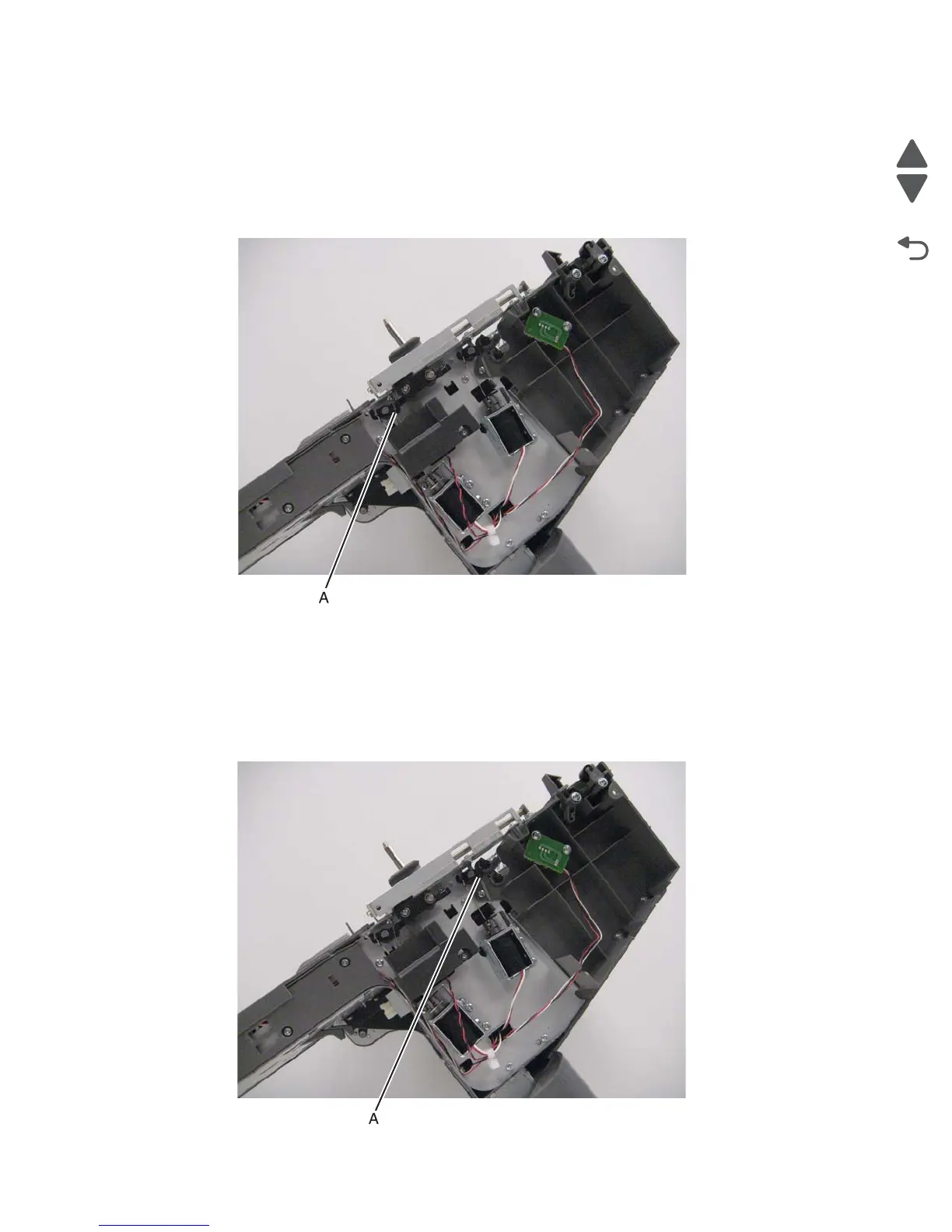

3. Use a spring hook to remove the spring (A).
HTU bin media exit spring removal
1. Remove all output options from the printer.
2. Remove the front standard bin cover. See “HTU front standard bin cover removal” on page 4-294.
3. Use a spring hook to remove the spring (A).
