4-326 Service Manual

5062

Go Back

HTU timing belts (rear) removal

1. Remove all output options from the printer.

2. Remove the rear redrive cover. See “HTU rear redrive cover removal” on page 4-310.

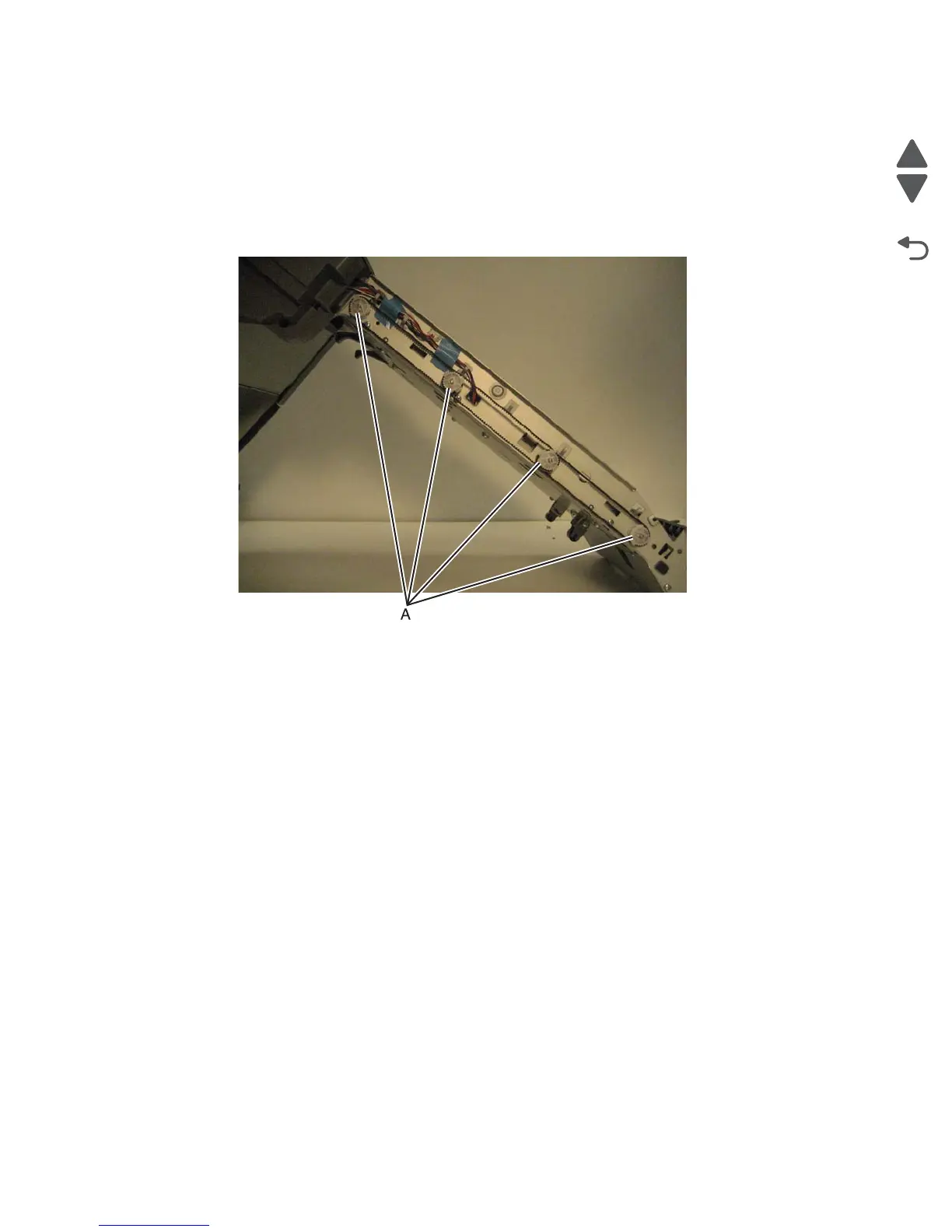

3. Remove one of the gears (A) to remove the belt you are replacing.

Note: Remove the center belt to access the other two belts.
