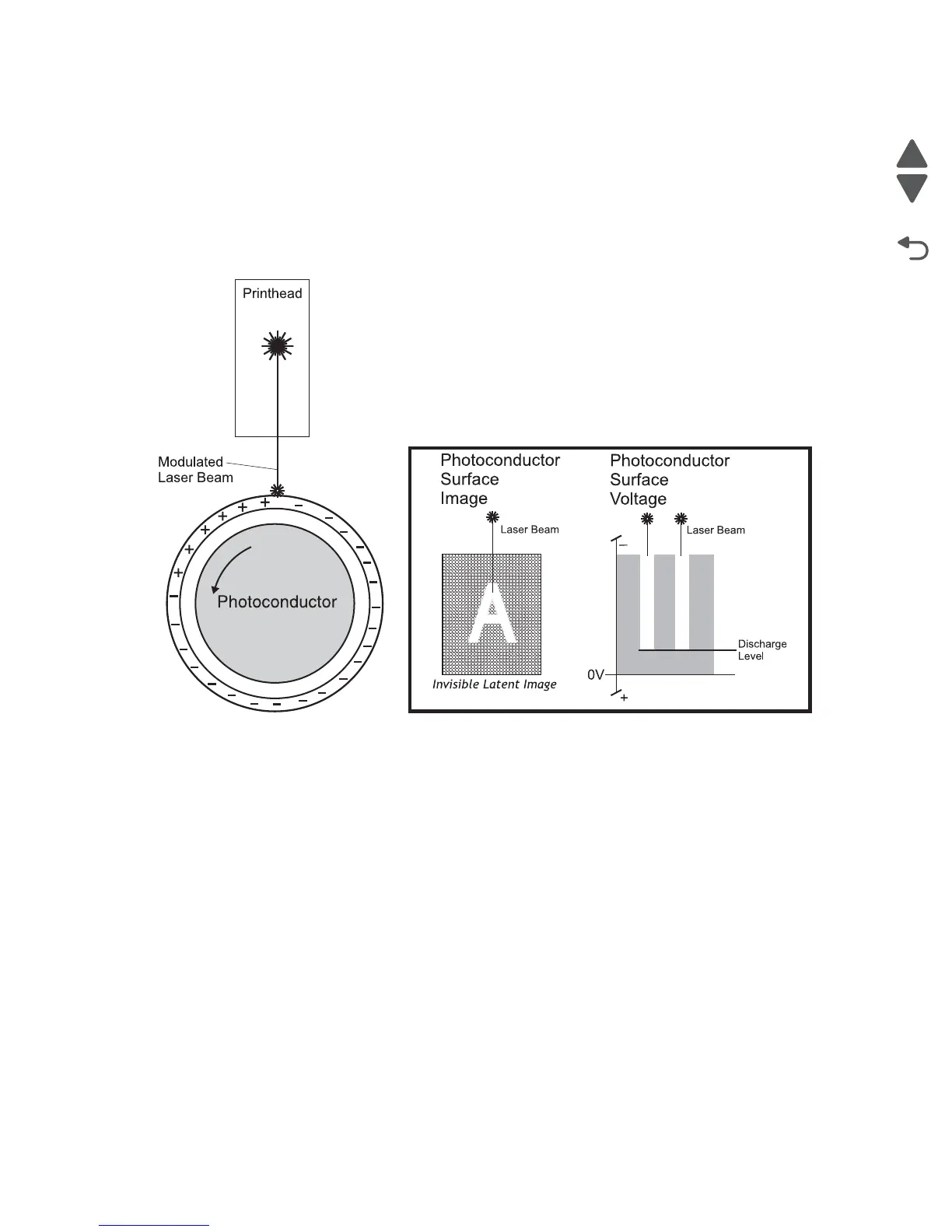

Step 2: Expose
During the expose step, the laser fires a focused beam of light at the surface of each photoconductor and writes
an invisible image, called a latent image or electrostatic image, for each color.
The laser beam only discharges the surface where the beam hits the photoconductor. This creates a difference
in charge potential between the exposed area and the rest of the photoconductor surface.
Service tips
• The laser beam passes through a glass lens as it exits the laser unit. If this lens gets contaminated
with toner or other debris, it will cause vertical streaking of white/lightness on the page. Cleaning the
lens will solve the problem.
• Never touch the surface of the photoconductor with your bare hand. The oil from your skin may cause
a charge differential on the surface, and toner will not properly stick. The result would be repeating
blotches of voids/light print on a page. Then the photoconductor will have to be replaced.
• The surface of the photoconductor is coated with an organic substance that makes it sensitive to
light. Be sure to cover the photoconductor when you are working on the printer so you don’t “burn” it.
If exposed to light for too long, it will cause light/dark print quality problems and will have to be
replaced.

Lexmark C792 series Specifications

General

Print Technology	Color Laser
Print Speed (Letter, Black)	50 ppm
Print Speed (Letter, Color)	50 ppm
Processor Speed	1.2 GHz
Monthly Duty Cycle	150, 000 pages
Maximum Paper Size	8.5 x 14 inches (Legal)
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	1200 x 1200 dpi
Duplex Printing	Standard
Connectivity	USB, Ethernet
Media Sizes Supported	A4, A5, Letter, Legal, Executive, Folio, JIS B5
Media Types Supported	Card Stock, Envelopes, Labels, Plain Paper, Transparencies
Input Capacity (Standard)	650 sheets
Output Capacity (Standard)	500 sheets
