4-234 Service Manual

5062

Go Back

Output option removals

5-bin mailbox

5-bin mailbox access door removal

See“5-bin mailbox assembly (covers)” on page 7-35 for the part number.

1. Remove the mailbox from the printer.

2. Remove the front cover. See “Finisher or stacker front cover removal” on page 4-260.

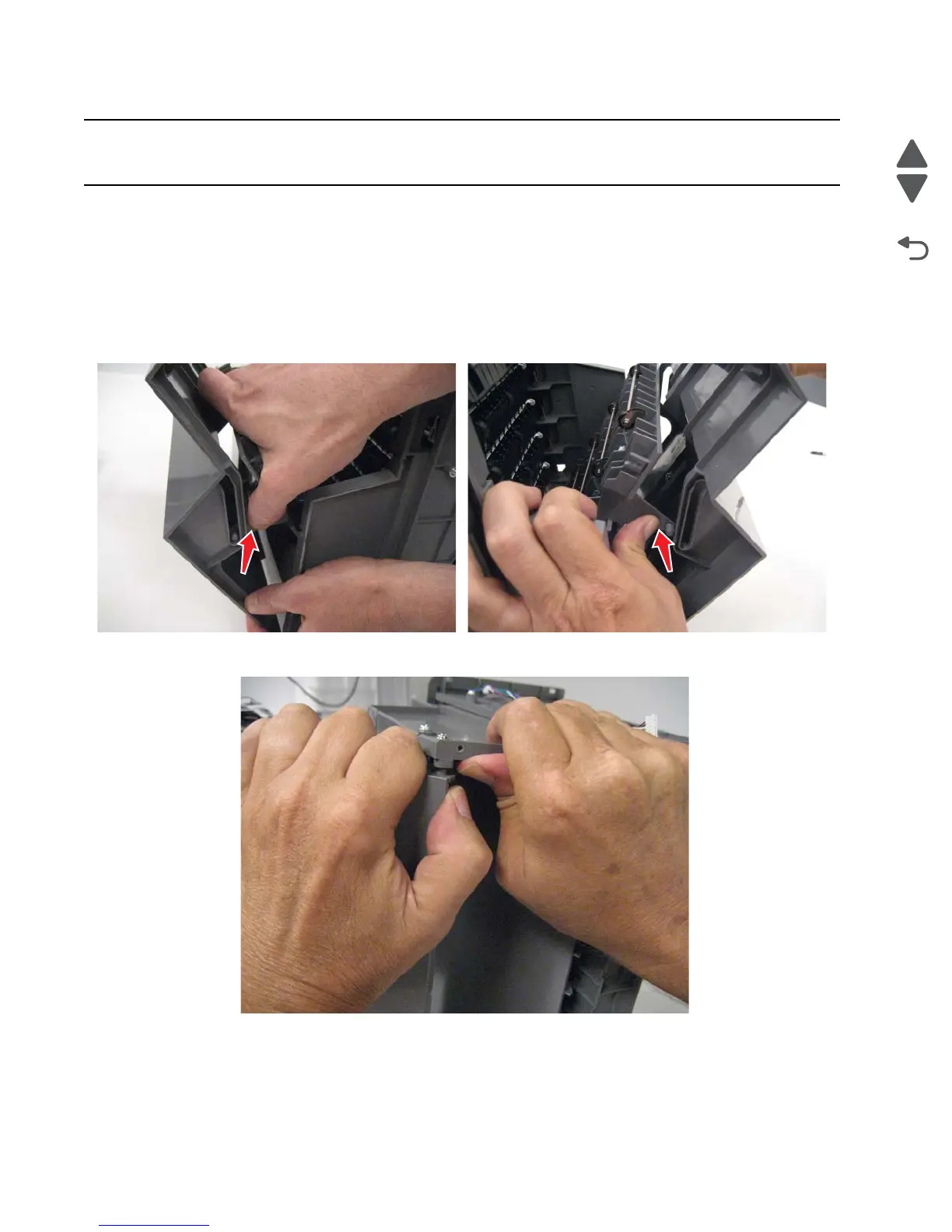

3. Open the access door, and press in to release the support pins from each side of the door.

4. Flex a side plate enough to free one hinge of the door, and then remove the door.
